461603x48A Murray - Garden Tractor (2003)

Model: 461603x48A

Back To Assemblies

Save Part Not Listed?
product name

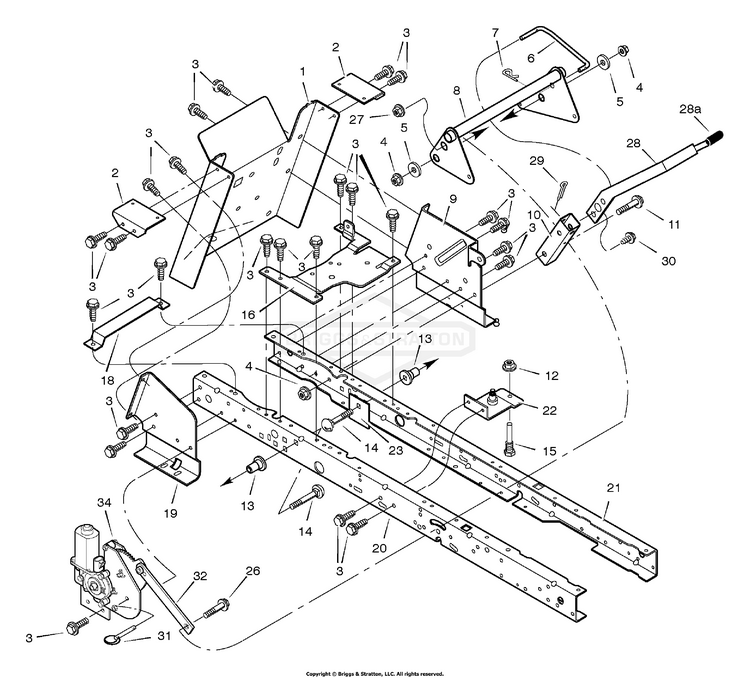

Rear Frame Assembly

...
...
1
Frame, Rear Hitch BS-690094E701
...
2
Bracket, Seat Deck BS-690077E700
...
3
Screw BS-26X249MA
...
4
NUT, CNTR LCK, 3/8-16 BS-703893
...
5
Washer BS-17X168ZMA
...
6
Link, Lift Handle BS-690550E701MA
...
7
PIN, 3/32 X 1.6 BS-703300
...
8
Assembly, Lifter BS-1001692E701
...
9
Bracket, Left Transaxle BS-1001691E701
...
10
Bracket, Lift Pivot BS-1001693E701
...
11
Bolt, Shoulder BS-009X53MA
...
12
NUT, 5/16-18, GR5 BS-703409
...
13
Spacer, Lifter BS-690151MA
...
14
Bolt, Carriage BS-002X85MA
...
15
Guide, Belt BS-094384MA
...
16
Bracket, Stationary Idler BS-690233E701
...
18
Plate BS-690482E701
...
19
Bracket, Right Transaxle BS-690064E700
...
20
Frame, Right BS-1001268E701
...
21
RAIL-FRAME LH BS-1001269E701MA
...
22
Bracket, Idler BS-690417E701
...
23
Plate, Stiffening BS-1001098E701
...
26
Bolt, Shoulder BS-009X50MA
...
27
NUT, HEX FLNG,5/16-18 BS-704067
...
28
Indicator, Electric Lift BS-1001673 Z
...
28A
Grip, Electric Lift BS-1401337
...
29
PIN, COTTER, 3/32X.75 BS-703312
...
30
SCREW, 3/8-16X.75 BS-703950
...
31
Pin, Stop BS-1001701MA
...
32
Link, Bar BS-1001682E700
...
34
Ass'y, Gear Case & Motor (Included with Ref. No. 32) BS-1001675MA
