461603x48A Murray - Garden Tractor (2003)

Model: 461603x48A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

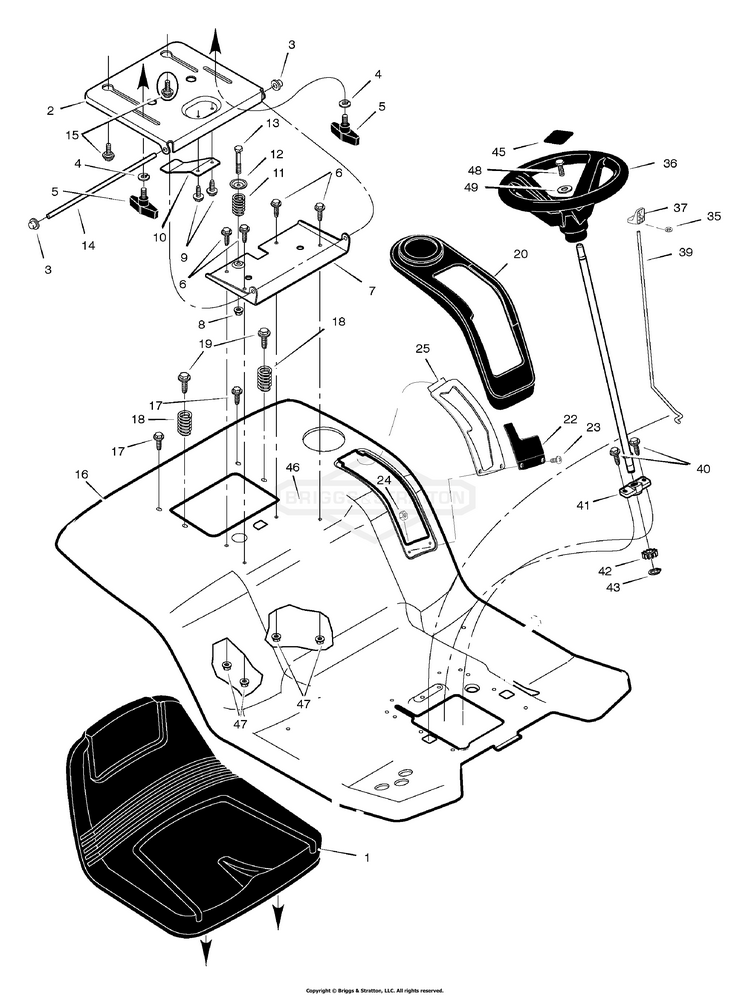

Seat Deck

...
...
1
Seat BS-095415MA
...
2
SUPPORT, SEAT BS-7300875BMYP
...
3
PUSHNUT, 3/8 BS-703948
...
4
WASHER, FLAT 5/16 BS-704015
...
5
Bolt, Wing BS-1001054MA
...
6
CAPSCREW,5/16-18X.625 BS-703822
...
7
Bracket, Pivot BS-1001648E701MA
...
8
NUT .25-20 FLANGELOCK BS-015X89MA
...
9
Screw BS-26X229MA
...
10
Spring, Leaf BS-094057MA
...
11
SPRING, Compression BS-164X31MA
...
12
Washer, Cup BS-094155 Z
...
13
Bolt BS-009X55MA
...
14
Rod, Pivot BS-094156ZMA
...
15
Bolt, Shoulder BS-009X56MA
...
16
Deck, Seat BS-094629E700
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Screw BS-26X249MA
...
20
Cover, Detent with Cup Holder BS-094469
...
22
Cover, Detent BS-094483
...
23
Bolt BS-009X47MA
...
24
NUT#10-24 MCLEANLOCK BS-015X81MA
...
25
Plate, Detent BS-1001671E700
...
35
Nut, Push BS-028X49MA
...
36
Wheel, Steering BS-1001226MA
...
37
Knob, Parking Brake BS-095315MA
...
39
Rod, Parking Brake BS-1001217 Z
...
40
Screw BS-26X267MA
...
41
Bearing, Lower BS-094124MA
...
42
GEAR - PINION BS-690183MA
...
43
E-Ring BS-011X25MA
...
44
Shaft, Steering BS-690625
...
45
Insert, Steering Wheel BS-1001441MA
...
47
NUT, HEX, 5/16-18 BS-703902
...
48
Screw, Hex BS-0025X3MA
...
49
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
--
Manual and Parts List BS-F-030767L
