461603x48A Murray - Garden Tractor (2003)

Model: 461603x48A

Back To Assemblies

Save Part Not Listed?
product name

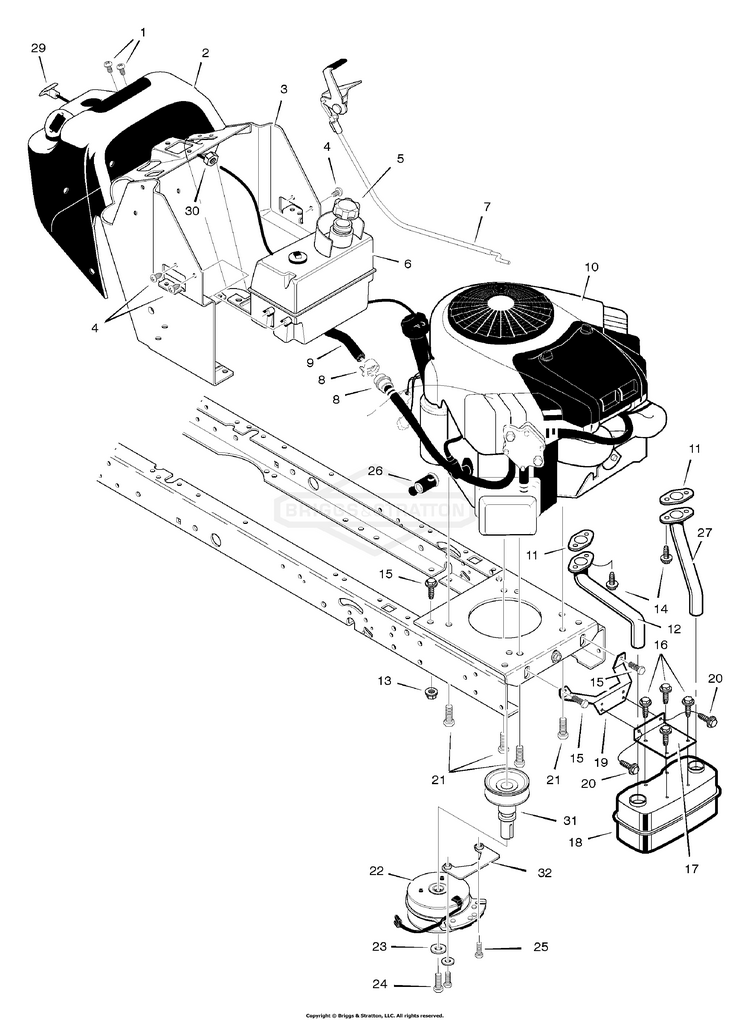

Engine Mount

...
...
1
SCREW, Thread Forming BS-26X270MA
...
2
Dash BS-1001672
...
3
Console BS-95175
...
4
Screw BS-26X253MA
...
5
FUEL CAP (Included with Ref. No. 6) BS-092317MA
...
6
FUEL KIT 2.8 BS-7601093MA
...
7
Control, Throttle BS-1001503
...
8
CLAMP, Hose (Included with Ref. No. 6) BS-791850
...
9
Fuel Line (Must cut to length) (Included with Ref. No. 6) BS-7601033MA
...
11
Gasket, Exhaust BS-711851MA
...
12
Tube, Right Exhaust BS-690541MA
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
Bolt BS-06X103MA
...
15
Screw BS-26X249MA
...
16
Screw BS-26X229MA
...
17
Bracket, Muffler BS-690538E701MA
...
18
Muffler BS-093259MA
...
19
BRKT - MUFF MTG HP BS-690537E701MA
...
20
Screw BS-26X213MA
...
21
SCREW-HEX WSHR HD TAP BS-2828635SM
...
22
Clutch, Electric BS-690461
...
23
Washer BS-120383
...
24
Bolt BS-428644MA
...
25
Screw BS-26X249MA
...
26
Drain, Oil BS-325547MA
...
--
Cap, Oil Drain BS-327422
...
27
Tube, Left Exhaust BS-690542MA
...
29
Choke BS-776113MA
...
30
NUT, 3/8-16 BS-703333
...
31
Adapter, Pulley BS-690455
...
32
Plate, Brake BS-094935E717
