46107x92A Murray - Garden Tractor (2000)

Model: 46107x92A

Save Part Not Listed?

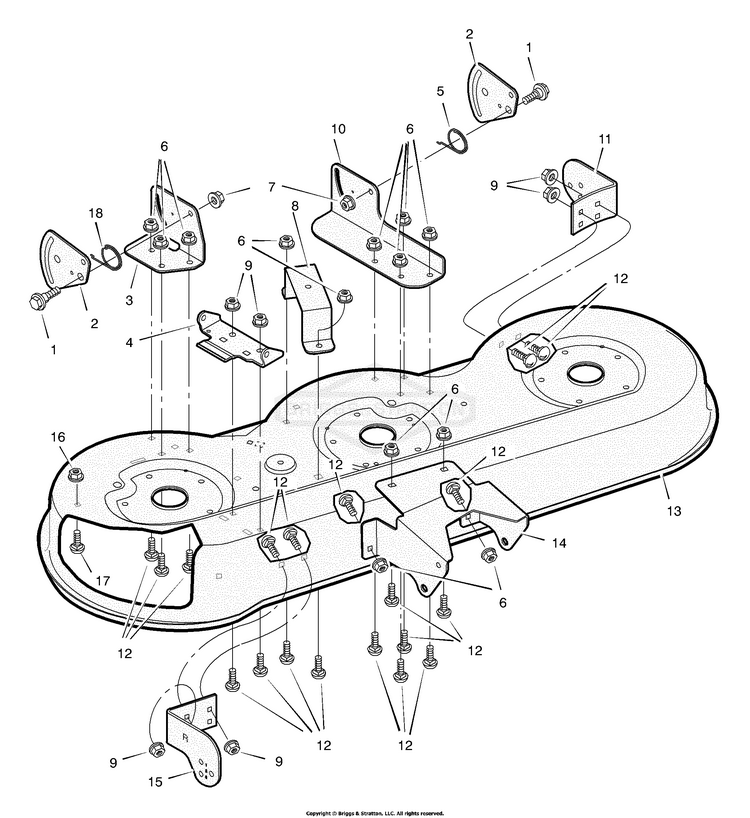

Mower Housing

BOLT-SHD.38-16X.499D BS-009X51MA

Plate, Suspension BS-690128E700

Bracket, Right Rear BS-094598E700

Bracket, Hinge BS-092014E700

Spring, Left BS-166X43MA

NUT, 5/16-18, GR5 BS-703409

NUT, CNTR LCK, 3/8-16 BS-703893

Bracket, Bell Crank BS-094601E700

NUT, HEX FLNG,5/16-18 BS-704067

Bracket, Left Lifter BS-094600E700MA

Bracket, Left Gauge Wheel BS-094919E700

BOLT BS-703159

Housing, Blade BS-690204E700

Bracket, Front Deck BS-094997SEMA

Bracket, Right Gauge Wheel BS-094918E700

RETAINER, GR5, 5/16 BS-703297

BOLT, Round Head, Short Square Neck BS-703185

Spring, Right BS-166X42MA
