46104x8D Murray - Garden Tractor (2002)

Model: 46104x8D

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

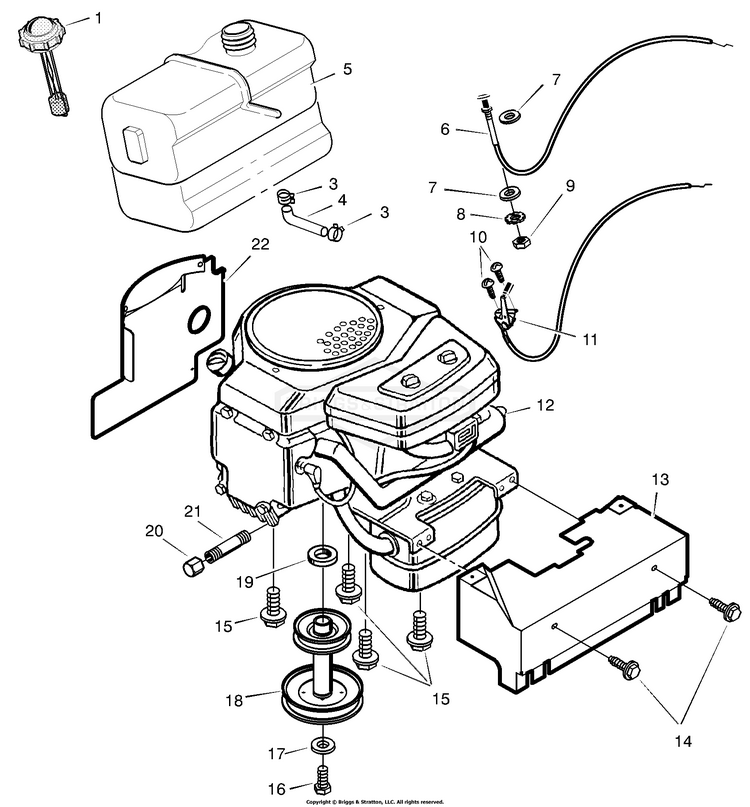

Engine Mount

...
...
1
Cap, Gas (Included with Ref. No. 5) BS-1001279MA
...
3
CLAMP, Hose (Included with Ref. No. 5) BS-791850
...
4
Fuel Line (Must cut to length) (Included with Ref. No. 5) BS-7601033MA
...
5
Tank, Fuel BS-690306
...
6
Cable, Choke BS-776113MA
...
7
WASHER BS-703326
...
8
WASHER, EXT, 3/8 BS-703864
...
9
Nut BS-015X33MA
...
10
Screw BS-26X201MA
...
11
Control, Throttle BS-093165MA
...
--
MUFFLER BS-690838
...
--
Liner, Port (Muffler) BS-095200
...
13
Shield Assembly, Heat BS-093191
...
14
SCREW.25-20 S-T BS-26X263MA
...
15
SCREW-HEX WSHR HD TAP BS-2828635SM
...
16
Bolt BS-01X140MA
...
17
WASHER.46.97.25 FLAT BS-17X170MA
...
18
Pulley, Stack BS-690225 Z
...
19
Spacer BS-093077MA
...
20
Cap, Oil Drain BS-021651
...
21
Pipe, Oil Drain BS-092279
...
22
Baffle, Rear Heat BS-093078
