46104x14A Murray - Garden Tractor (2000)

Model: 46104x14A

Back To Assemblies

Save Part Not Listed?
product name

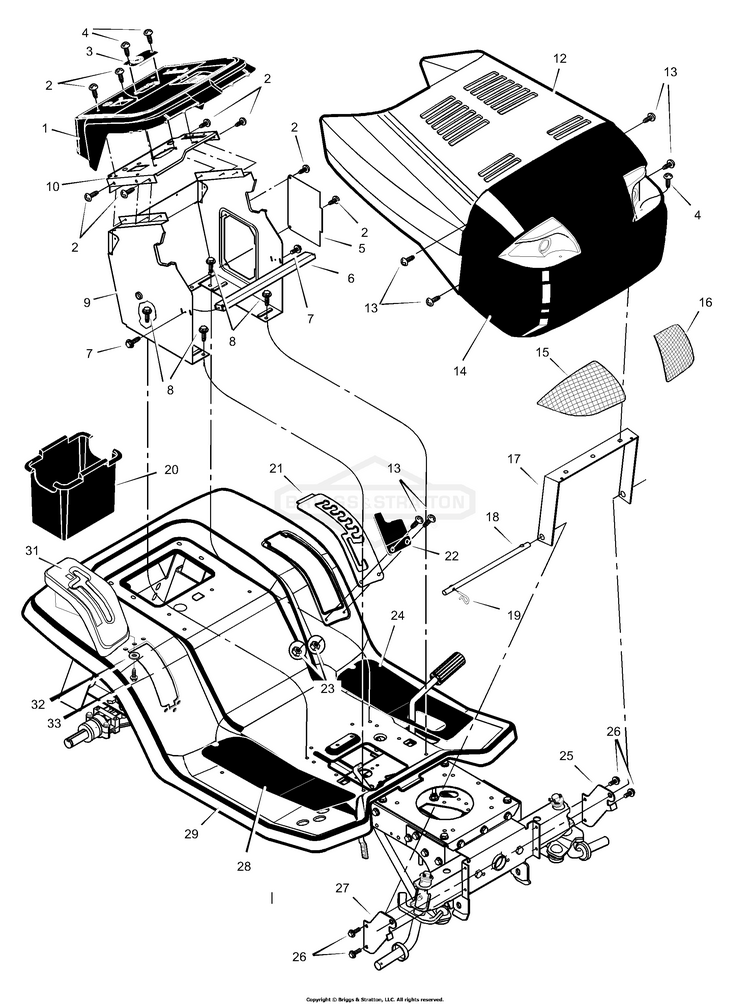

Hood And Dash

...
...
1
Dash BS-094223
...
2
SCREW, Thread Forming BS-26X270MA
...
3
Bearing, Upper Steering BS-094219MA
...
4
Screw BS-26X239MA
...
5
Panel, Side Access BS-093007E700
...
6
Channel, Support BS-095081
...
7
SCREW.25-20 S-T BS-26X263MA
...
8
Screw BS-26X249MA
...
9
Support, Dash BS-095082
...
10
Plate, Dash BS-094221E701MA
...
12
HOOD BS-093215E701MA
...
13
Bolt, Shoulder BS-009X47MA
...
14
Grille (Includes Lens) BS-092542
...
15
Lens, Right BS-092539MA
...
16
Lens, Left BS-092540MA
...
17
Brace, Grille BS-092541MA
...
18
Rod, Pivot BS-093137 Z
...
19
PIN, 3/32 X 1.6 BS-703300
...
20
Container, Battery BS-094069
...
21
Plate, Lift Detent BS-094194E700
...
22
Cover BS-094680MA
...
23
NUT#10-24 MCLEANLOCK BS-015X81MA
...
24
Mat, Left BS-094109
...
25
Support, Left Grille BS-690544E700
...
26
Screw BS-26X277MA
...
27
Support, Right Grille BS-690543E700
...
28
Mat, Right BS-094180
...
29
Deck, Seat BS-094845E700
...
30
Decal, Left Hood BS-44X7671
...
31
Cover, Shift BS-690623
...
32
Washer BS-017X38MA
...
33
Screw BS-26X284MA
