46103A Murray - Garden Tractor (1999)

Model: 46103A

Back To Assemblies

Save Part Not Listed?

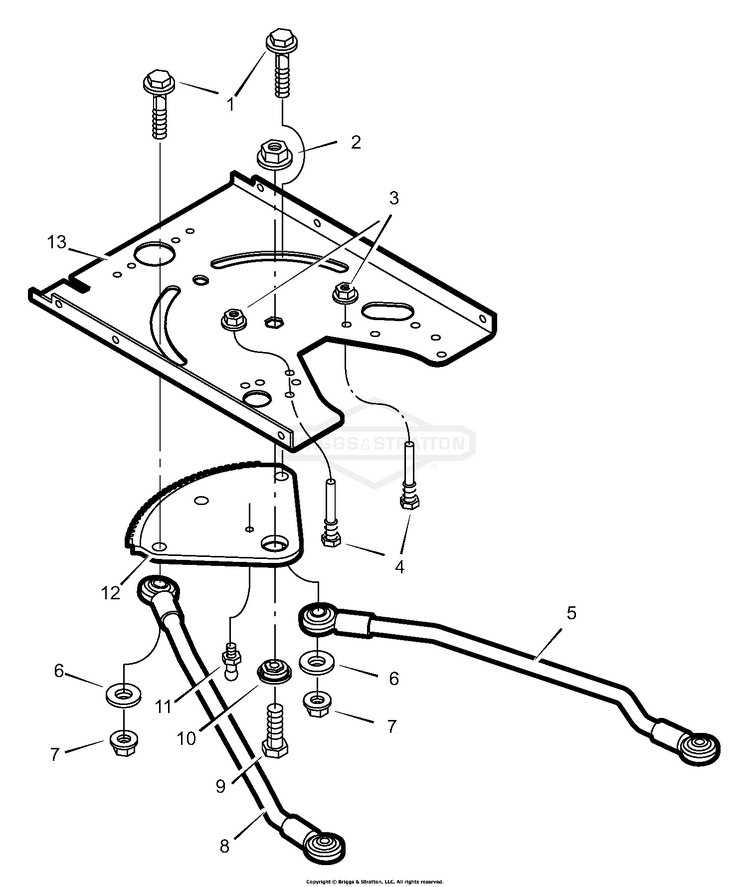

product name

Sector Gear

...
...
1
Bolt, Shoulder BS-009X62MA
...
2
Nut, Lock BS-15X113MA
...
3
NUT, 5/16-18, GR5 BS-703409
...
4
Guide, Screw BS-094384MA
...
5
Link, Left Drag BS-690146E700
...
6
Washer BS-17X168ZMA
...
7
NUT, CNTR LCK, 3/8-16 BS-703893
...
8
Link, Right Drag BS-690145E700
...
9
BOLT BS-5025011X8FS
...
10
Bearing, Sector Gear BS-690180MA
...
11
Fitting, Lub BS-092530MA
...
12
Gear, Sector BS-690147E700
...
13
Plate, Steering BS-690167E700
Schematic Image Zoomed
