461008x92A Murray - Garden Tractor (2003)

Model: 461008x92A

Back To Assemblies

Save Part Not Listed?
product name

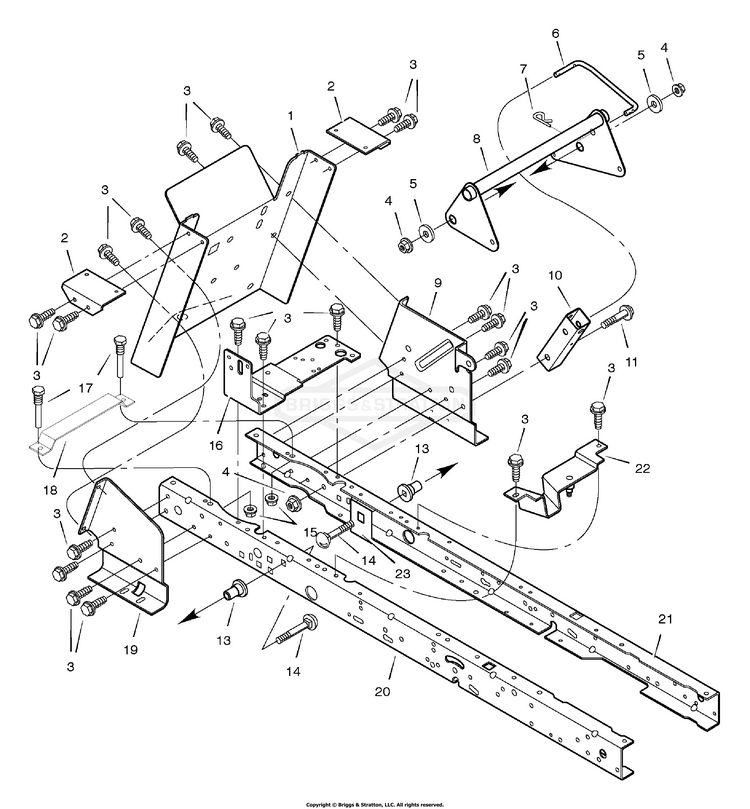

Rear Frame Assembly

...
...
1
Frame, Rear Hitch BS-690094E701
...
2
Bracket, Seat Deck BS-690077E700
...
3
Screw BS-26X249MA
...
4
NUT, CNTR LCK, 3/8-16 BS-703893
...
5
Washer BS-17X168ZMA
...
6
Link, Lift Handle BS-690122E700
...
7
PIN, 3/32 X 1.6 BS-703300
...
8
Assembly, Lifter BS-1001111E701MA
...
9
Bracket, Left Transaxle BS-690065E700
...
10
Bracket, Lift Pivot BS-094015E700
...
11
Bolt, Shoulder BS-009X53MA
...
13
Spacer, Lifter BS-690151MA
...
14
Bolt, Carriage BS-002X85MA
...
15
NUT, 5/16-18, GR5 BS-703409
...
16
Bracket, Right Shift BS-1001302E701
...
17
Screw, Guide BS-094384MA
...
18
Support, Battery BS-690482E701
...
19
Bracket, Right Transaxle BS-690064E700
...
20
Frame, Right BS-1001268E701
...
21
RAIL-FRAME LH BS-1001269E701MA
...
22
Bracket, Idler BS-690365 Z
...
23
Plate, Stiffening BS-1001098E701
