461004x92A Murray - Garden Tractor (2004)

Model: 461004x92A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

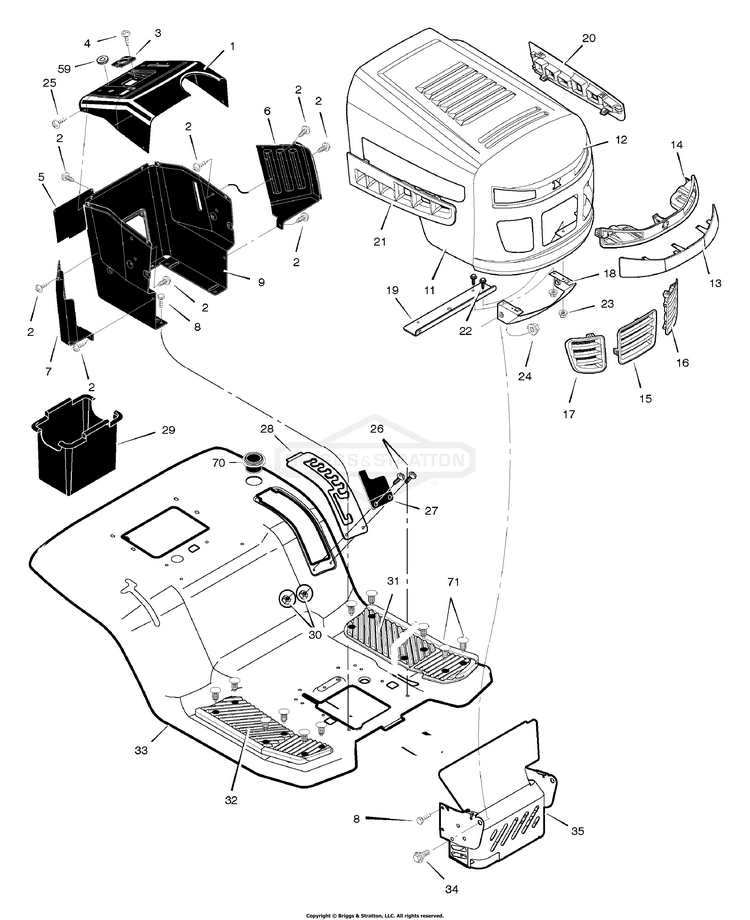

Hood And Dash

...
...
1
Dash BS-1001593E700
...
2
SCREW, Thread Forming BS-26X270MA
...
3
Bearing, Upper Steering BS-1001491MA
...
4
Screw BS-26X238MA
...
5
Panel, Access BS-093007E701MA
...
6
Panel, Left Side BS-095218MA
...
7
Panel, Right Side BS-095217MA
...
8
Screw BS-26X249MA
...
9
SUPPORT, DASH BS-7300872BMYP
...
11
HOOD BS-7400263ZYP
...
12
GRILLE BS-7400282ZYP
...
13
Lens BS-1001820MA
...
14
Housing, Light BS-1001819MA
...
15
Insert, Center BS-1001816MA
...
16
Insert, Left BS-1001817MA
...
17
Insert, Right BS-1001818MA
...
18
Bracket, Lower Pivot BS-1001799E701MA
...
19
Bracket, Support BS-1001921E701MA
...
20
Insert, Left Hood BS-1001814MA
...
21
Insert, Right Hood BS-1001815MA
...
22
SCREW.25-20 S-T BS-26X263MA
...
23
NUT, 1/4-20, GR5 BS-703233
...
24
Nut BS-15X124
...
25
Screw BS-26X201MA
...
26
Bolt, Shoulder BS-009X47MA
...
27
Cover BS-094680MA
...
28
Plate, Lift Detent BS-094194E701MA
...
29
Container, Battery BS-690424MA
...
30
NUT#10-24 MCLEANLOCK BS-015X81MA
...
31
Mat, Left BS-095408MA
...
32
Mat, Right BS-095409MA
...
33
Deck, Seat BS-1001555E700
...
34
BOLT, SHOULDER BS-702315
...
35
Shield, Heat BS-1001920-701
...
59
Grommet BS-1001755MA
...
70
Holder, Beverage BS-1001542MA
...
71
Fastener, Panel - Black BS-0913X1
