461004x92A Murray - Garden Tractor (2004)

Model: 461004x92A

Back To Assemblies

Save Part Not Listed?
product name

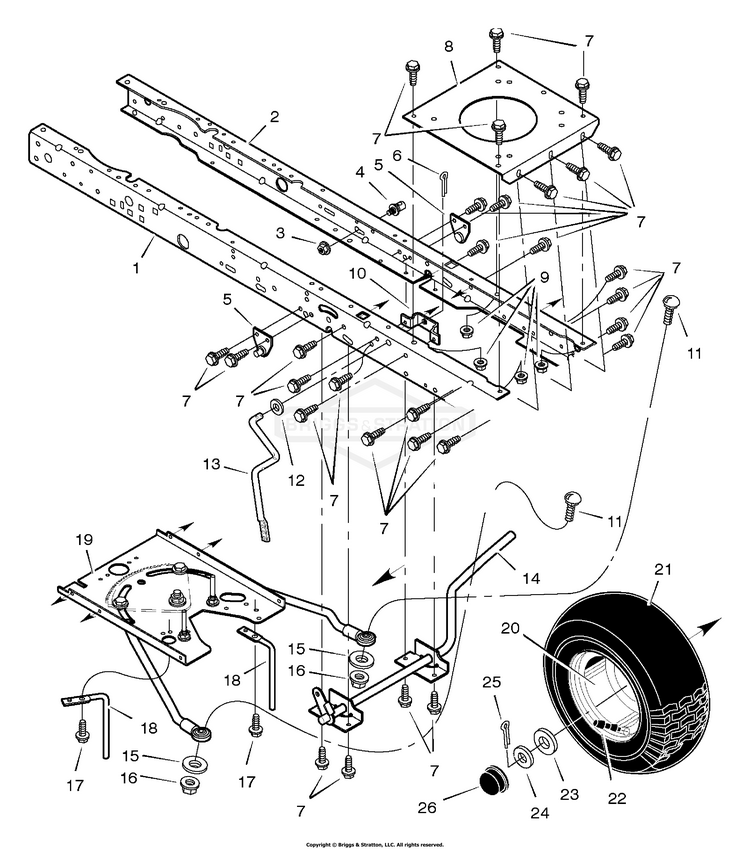

Front Frame Assembly

...
...
1
Frame, Right BS-1001268E701
...
2
RAIL-FRAME LH BS-1001269E701MA
...
3
NUT, CNTR LCK, 3/8-16 BS-703893
...
4
Stud, Swivel BS-690182MA
...
5
Bracket Ass'y, Suspension BS-690406E700
...
6
PIN, COTTER, 3/32X.75 BS-703312
...
7
Screw BS-26X249MA
...
8
Plate, Engine BS-094006E701MA
...
9
NUT, HEX FLNG,5/16-18 BS-704067
...
10
Bracket, PTO Crank BS-094005E700
...
11
Bolt, Carriage BS-002X87
...
12
Washer BS-017X57MA
...
13
CRANK, PTO BS-690394E701MA
...
14
LEVER, BRAKE, CLUTCH BS-7400256ZMA
...
15
Washer BS-17X152
...
16
Nut BS-015X41MA
...
17
SCREW, 3/8-16X.75 BS-703950
...
18
Guide, Belt BS-690192E701MA
...
20
Wheel & Tire Assembly BS-092644601
...
21
Tire * BS-024393MA
...
--
Tube BS-407049MA
...
--
Bearing, Wheel BS-093604
...
22
VALVE STM&CP,TR41 SE BS-024373MA
...
23
Washer BS-17X194MA
...
24
Washer BS-17X114MA
...
25
Pin, Cotter BS-030X49MA
...
26
HUB CAP BS-094618MA
