461000x8A Murray - Garden Tractor (2003)

Model: 461000x8A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

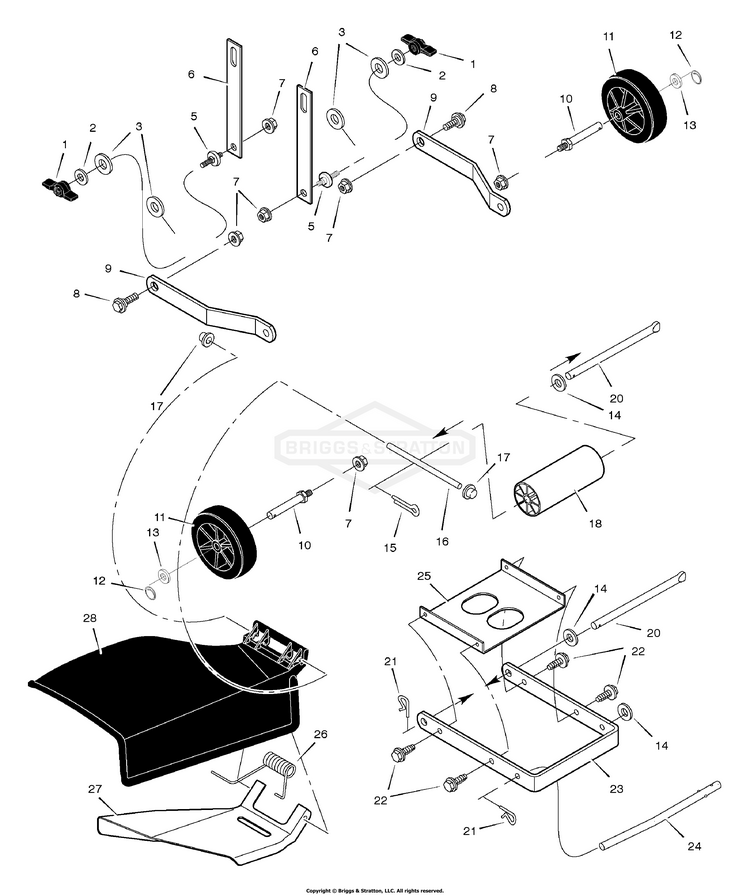

Mower Housing Suspension

...
...
1
WINGKNOB, 5/16-18 BS-703065
...
2
WASHER,FLAT .33 1. 16 BS-017X45MA
...
3
FRICTION PAD BS-094137MA
...
5
PIN, Hanger BS-095194MA
...
6
Link, Lift BS-690550E700
...
7
NUT, CNTR LCK, 3/8-16 BS-703893
...
8
Bolt, Shoulder BS-009X52MA
...
9
Bracket, Rear Suspension BS-690578E701MA
...
10
BOLT, Gauge Wheel BS-094025MA
...
11
Wheel BS-092683MA
...
12
Pin, Hair BS-031X11MA
...
13
Washer BS-017X91MA
...
14
Washer BS-17X103MA
...
15
Pin, Cotter BS-030X49MA
...
16
Rod, Deflector BS-092159ZMA
...
17
PUSHNUT, 3/8 BS-703948
...
18
Roller BS-1001252MA
...
20
Rod, Deck Suspension BS-094996MA
...
21
PIN, 3/32 X 1.6 BS-703300
...
22
Screw BS-26X249MA
...
23
Bracket, Front Suspension BS-094765E700
...
24
Rod, Hanger BS-094158ZMA
...
25
Stiffener BS-094604E700
...
26
Spring BS-166X34MA
...
27
Deflector, Inside BS-092103E701MA
...
28
Deflector, Chute BS-092100MA
