44U877-0026-G1 Briggs and Stratton Engine

Model: 44U877-0026-G1

Back To Assemblies

Save Part Not Listed?
product name

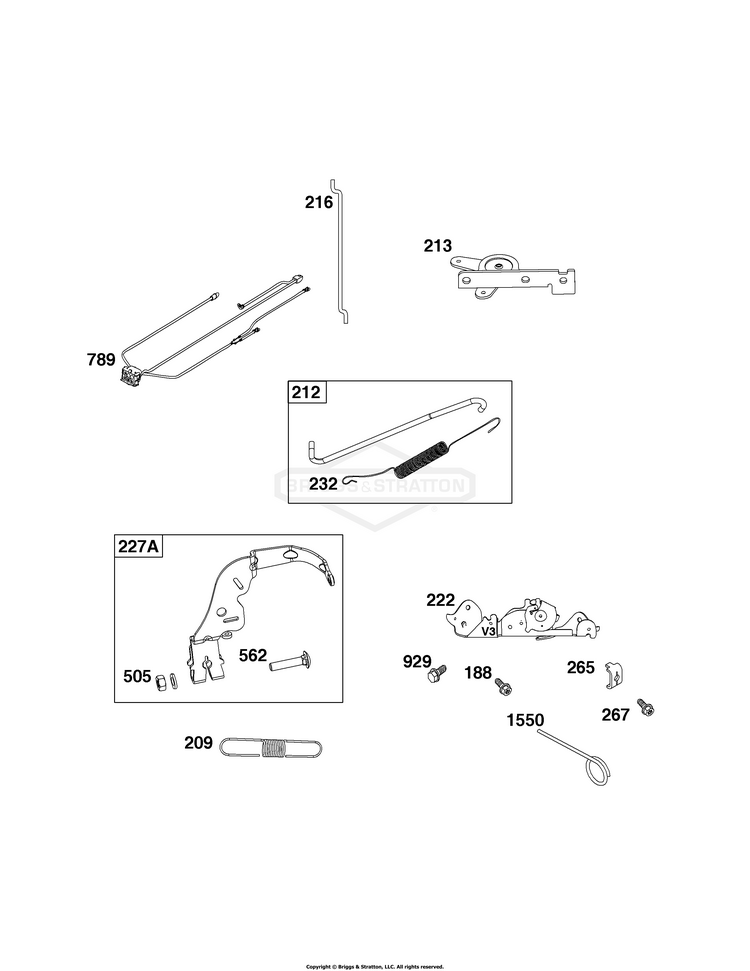

Controls Group

...
...
188
SCREW (Control Bracket) BS-691108
...
209
SPRING, Governor BS-799171
...
212
LINK, Throttle BS-597778
...
213
BRACKET, Choke Control BS-691021
...
216
LINK, Choke BS-691022
...
222
BRACKET, Control BS-798916
...
227A
LEVER, Governor Control BS-593857
...
232
SPRING, Governor Link BS-597550
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
505
NUT (Governor Control Lever) BS-691029
...
562
BOLT (Governor Control Lever) BS-690311
...
789
HARNESS, Wiring BS-591392
...
929
SCREW (Choke Control Bracket) BS-691003
...
1550
PIN, Speed Setting BS-595801
