44T677-0006-G1 Briggs and Stratton Engine

Model: 44T677-0006-G1

Back To Assemblies

Save Part Not Listed?
product name

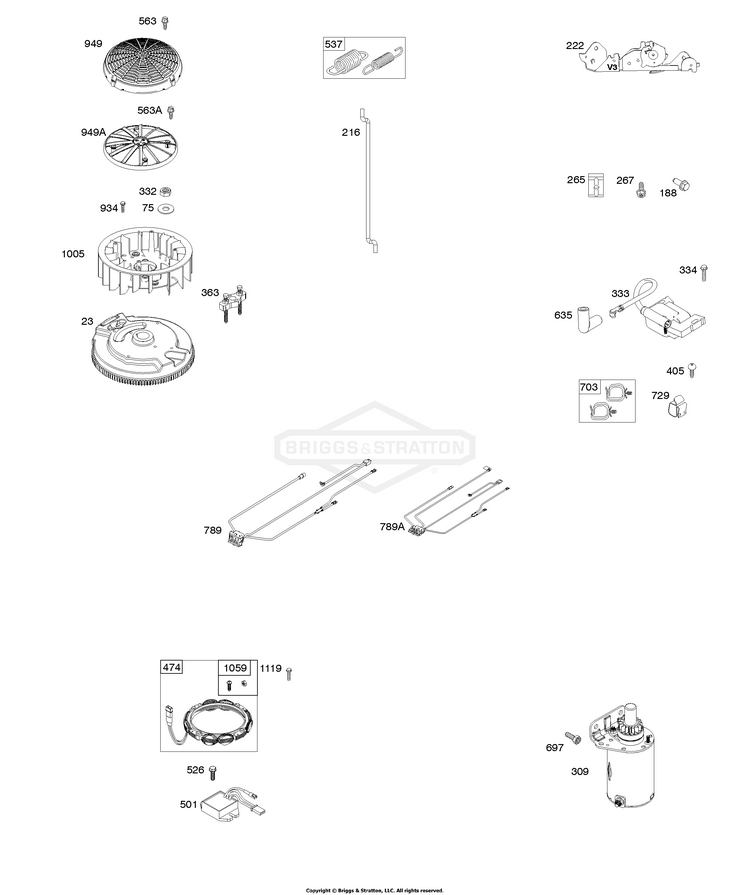

Flywheel, Alternator, Starter, Wire Harness

...
...
23
FLYWHEEL BS-594169
...
75
WASHER (Flywheel) BS-691056
...
188
SCREW (Control Bracket) BS-691108
...
216
LINK, Choke BS-691022
...
222
BRACKET, Control (V3 Manual Choke) BS-798916
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
309
MOTOR, Starter BS-590476
...
332
NUT (Flywheel) BS-691059
...
333
ARMATURE, Magneto BS-84012885
...
334
SCREW (Magneto Armature) BS-691061
...
363
PULLER, Flywheel BS-19203
...
405
SCREW (Back Plate) BS-594937
...
474
ALTERNATOR (10-16 Amp Regulated) BS-592830
...
501
REGULATOR BS-593490
...
526
SCREW (Regulator) BS-691108
...
537
KIT, Governor/Idle Spring BS-594917
...
563
SCREW (Debris Screen Guard) BS-698425
...
563A
SCREW (Debris Screen Guard) BS-799360
...
635
BOOT, Spark Plug BS-692076
...
697
SCREW (Starter Motor) (Drive Cap) BS-591909
...
703
CLIP BS-691010
...
729
CLIP, Wire BS-593826
...
789
HARNESS, Wiring BS-591392
...
934
SCREW (Fan Retainer) BS-593638
...
949
GUARD, Debris Screen BS-799357
...
949A
GUARD, Debris Screen BS-593206
...
1005
FAN, Flywheel BS-593640
...
1059
KIT, Screw/Washer (Alternator) BS-698516
...
1119
SCREW (Alternator) BS-691183
