44R777-0003-G1 Briggs and Stratton Engine

Model: 44R777-0003-G1

Back To Assemblies

Save Part Not Listed?
product name

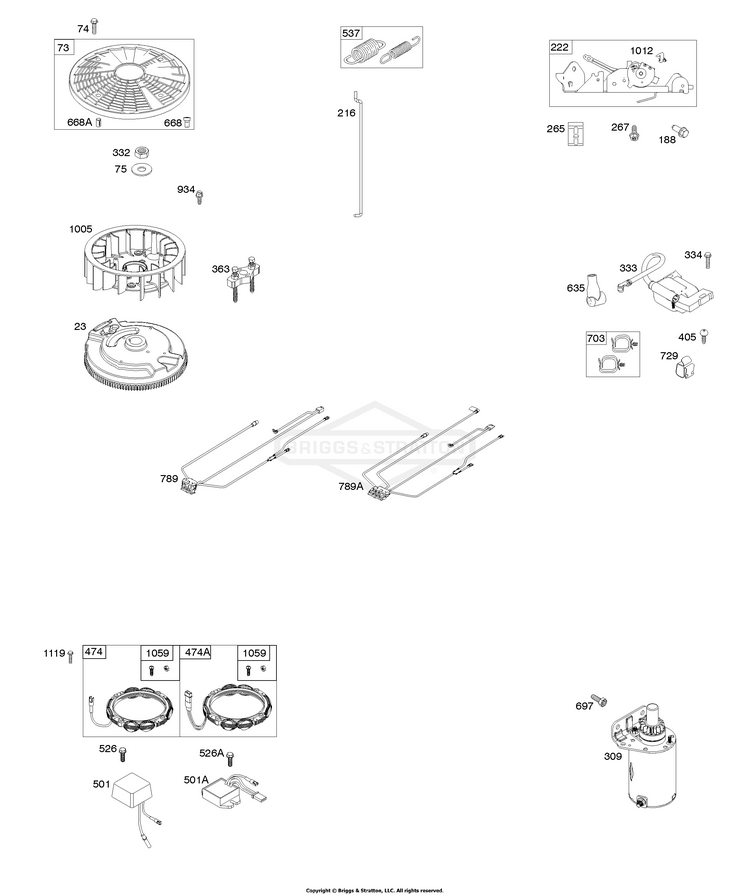

Flywheel, Controls, Wire Harness, Alternator, Starter

...
...
23
FLYWHEEL BS-594169
...
73
SCREEN, Rotating BS-494439
...
74
SCREW (Rotating Screen) BS-698425
...
75
WASHER (Flywheel) BS-691056
...
188
SCREW (Control Bracket) BS-691108
...
216
LINK, Choke (Choke A Matic) BS-796229
...
222
BRACKET, Control (Choke A Matic) BS-592555
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
309
MOTOR, Starter BS-592599
...
332
NUT (Flywheel) BS-691059
...
333
ARMATURE, Magneto BS-84012885
...
334
SCREW (Magneto Armature) BS-691061
...
363
PULLER, Flywheel BS-19203
...
405
SCREW (Back Plate) Used Before Code Date 15071600 BS-697820
...
405
SCREW (Back Plate) Used After Code Date 15071500 BS-594937
...
474
ALTERNATOR (5/9 Amp. Regulated) BS-84012661
...
474A
ALTERNATOR (10-16 Amp Regulated) BS-592830
...
501
REGULATOR (5/9 Amp. Regulated) BS-794360
...
501A
REGULATOR (10-16 Amp Regulated) BS-845907
...
526A
SCREW (Regulator) BS-691129
...
537
KIT, Governor/Idle Spring BS-594915
...
635
BOOT, Spark PLug BS-66538S
...
668
SPACER BS-691500
...
668A
SPACER BS-691215
...
697
SCREW (Starter Motor) (Drive Cap) BS-591909
...
703
CLIP BS-691010
...
729
CLIP, Wire BS-593826
...
789A
HARNESS, Wiring BS-591393
...
934
SCREW (Fan Retainer) BS-593638
...
1005
FAN, Flywheel BS-593640
...
1012
RETAINER, Link BS-592556
...
1059
KIT, Screw/Washer BS-698516
...
1119
SCREW (Alternator) BS-691183
