44N877-0009-B1 Briggs and Stratton Engine

Model: 44N877-0009-B1

Back To Assemblies

Save Part Not Listed?
product name

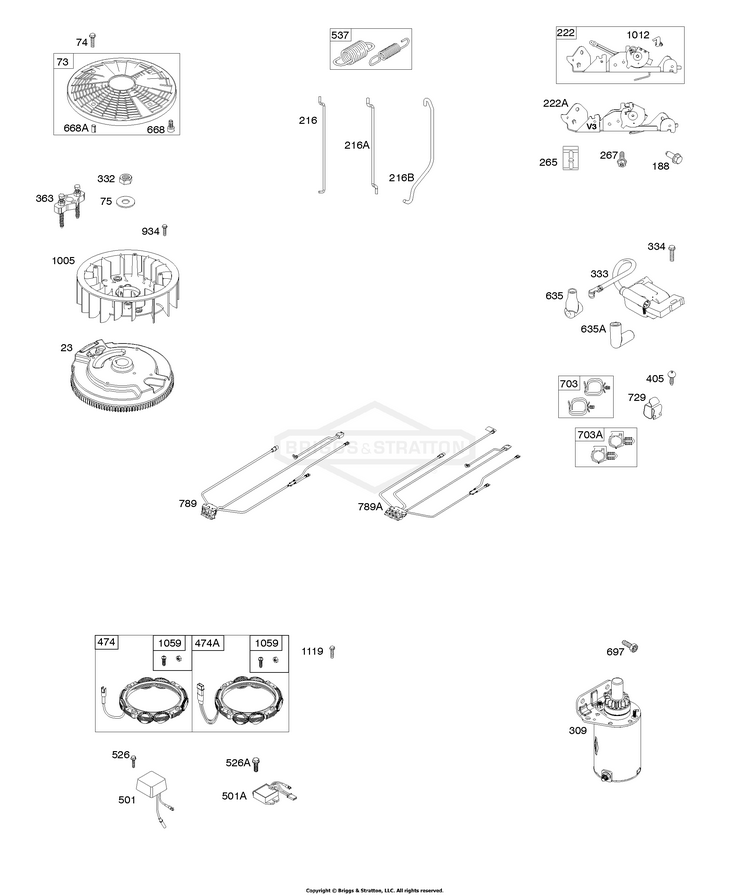

Flywheel, Alternator, Starter, Wire Harness

...
...
23
FLYWHEEL BS-594169
...
73
SCREEN, Rotating BS-494439
...
74
SCREW (Rotating Screen) BS-698425
...
75
WASHER (Flywheel) BS-691056
...
188
SCREW (Control Bracket) BS-691108
...
216A
LINK, Choke BS-691022
...
222A
BRACKET, Control BS-798916
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
309
MOTOR, Starter BS-590476
...
332
NUT (Flywheel) BS-691059
...
333
ARMATURE, Magneto BS-84012885
...
334
SCREW (Magneto Armature) BS-691061
...
363
PULLER, Flywheel BS-19203
...
405
SCREW (Back Plate) BS-594937
...
474
ALTERNATOR (5/9 Amp. Regulated) BS-84012661
...
501
REGULATOR BS-794360
...
526
SCREW (Regulator) BS-691129
...
526A
SCREW (Regulator) BS-691108
...
537
KIT, Governor/Idle Spring BS-594915
...
635A
BOOT, Spark Plug BS-692076
...
668
SPACER BS-691500
...
668A
SPACER BS-691215
...
697
SCREW (Starter Motor) (Drive Cap) BS-591909
...
703
CLIP BS-691010
...
703A
CLIP BS-592584
...
729
CLIP, Wire BS-593826
...
789A
HARNESS, Wiring BS-591393
...
877
WIRE/CONNECTOR, Alternator BS-790544
...
934
SCREW (Fan Retainer) BS-593638
...
1005
FAN, Flywheel BS-593640
...
1012
RETAINER, Link BS-592556
...
1059
KIT, Screw/Washer BS-698516
...
1119
SCREW (Alternator) BS-691183
