44N677-0051-B1 Briggs and Stratton Engine

Model: 44N677-0051-B1

Back To Assemblies

Save Part Not Listed?
product name

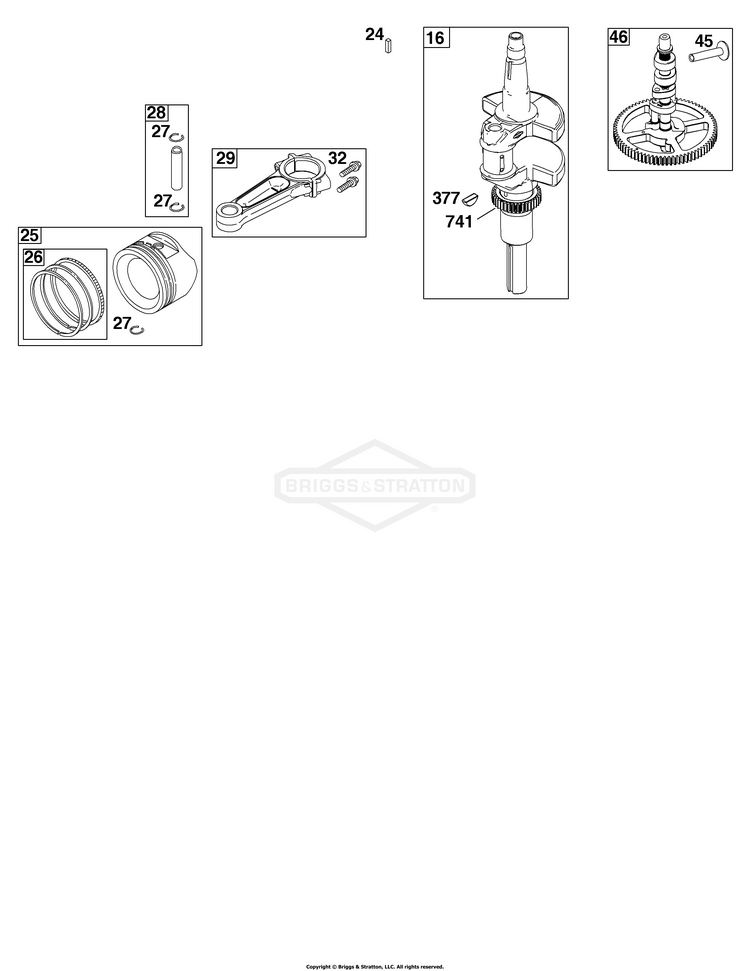

Crankshaft Group

...
...
16
CRANKSHAFT BS-595726
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY (Standard) BS-793560
...
25
PISTON ASSEMBLY (.020" Oversize) BS-793563
...
26
SET, Ring (Standard) BS-792026
...
26
SET, Ring (.020" Oversize) BS-792073
...
27
LOCK, Piston Pin BS-690975
...
28
PIN, Piston BS-593650
...
29
ROD, Connecting BS-84007297
...
32
SCREW (Connecting Rod) BS-690976
...
46
CAMSHAFT Used After Code Date 17102600 BS-796853
...
46
CAMSHAFT Used Before Code Date 17102700 BS-797242
...
377
KEY, Woodruff BS-690979
...
741
GEAR, Timing BS-690980
