42C777-1238-99 Briggs and Stratton Engine

Model: 42C777-1238-99

Back To Assemblies

Save Part Not Listed?
product name

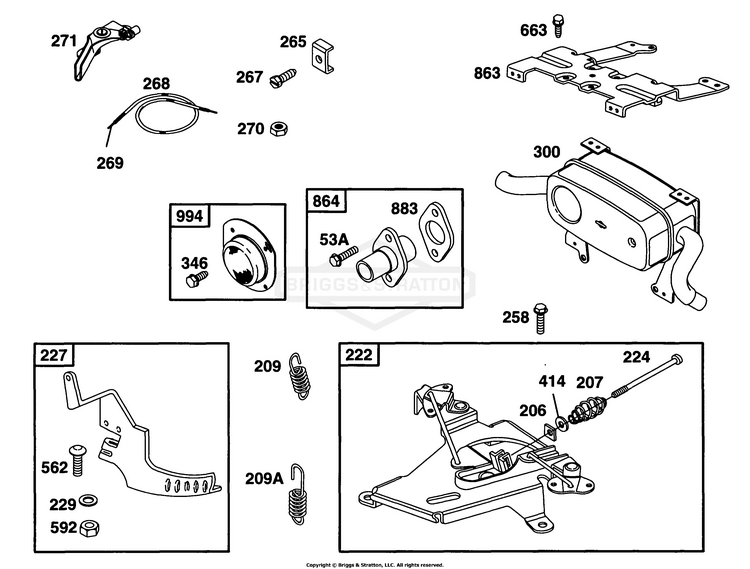

Muffler Grp, Controls

...
...
53A
SCREW BS-691681
...
206
NUT BS-690330
...
207
SPRING, Friction BS-262337
...
209A
SPRING, Governed Idle (Idle) BS-691807
...
209
SPRING, Governor BS-691273
...
222
BRACKET, Control BS-491282
...
224
SCREW BS-690329
...
227
LEVER, Governor Control BS-690762
...
229
WASHER BS-692810
...
258
SCREW BS-691003
...
265
CLAMP-CASING BS-692179
...
267
SCREW (10-32 X 5/8) BS-690804
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
300
MUFFLER BS-690838
...
346
SCREW (8-32 X 3/8) BS-690661
...
414
WASHER BS-690390
...
562
BOLT (Governor Lever) BS-690311
...
592
NUT (Starting Switch) BS-691029
...
663
SCREW (Control Panel) BS-690297
...
863
BRACKET, Muffler BS-690444
...
864
ADAPTER, Muffler BS-691970
...
883
GASKET, Exhaust Included in Gasket Set-Part No. 495868 BS-692282
...
994
ARRESTOR, Spark BS-794945
