42C777-1238-99 Briggs and Stratton Engine

Model: 42C777-1238-99

Back To Assemblies

Save Part Not Listed?
product name

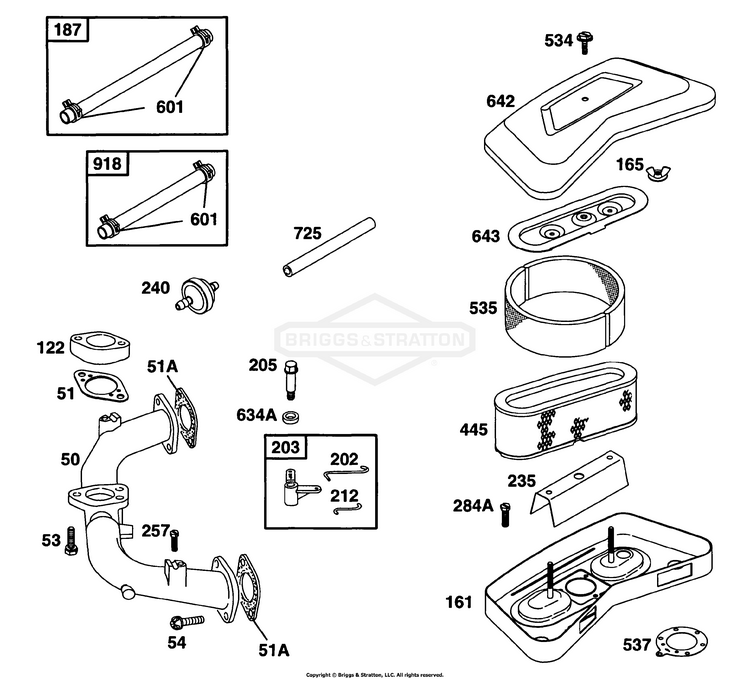

Air Cleaner Grp, Manifold

...
...
50
MANIFOLD, Intake BS-691709
...
51A
GASKET, Intake Included in Valve Overhaul Gasket Set-Part No. 498047. Included in Gasket Set-Part No. 495868 BS-692219
...
51
GASKET, Intake Included in Gasket Set-Part No. 495868. Included in Carburetor Kit-Part No. 491509 BS-692278
...
53
SCREW BS-690321
...
54
SCREW (Intake Manifold) BS-93208
...
122
SPACER, Carburetor BS-691928
...
161
BASE, Air Cleaner BS-691401
...
165
NUT BS-691331
...
187
LINE, Fuel (Cut To Required Length) BS-841589
...
202
LINK, Mechanical Governor BS-690570
...
203
LINK, Throttle BS-493230
...
205
SCREW BS-690322
...
212
LINK, Throttle BS-690571
...
235
SHIELD, Fuel Spray BS-691206
...
240
FILTER, Fuel (Fuel Pump) BS-394358S
...
257
SCREW BS-690316
...
284A
SCREW (Casing Clamp) BS-691100
...
445
FILTER, A/C Cartridge BS-394019S
...
534
SCREW BS-691675
...
535
FILTER, Pre Cleaner BS-272490S
...
537
GASKET, Air Cleaner Included in Gasket Set-Part No. 495868. Included in Carburetor Kit-Part No. 491509 BS-690273
...
601
CLAMP, Hose (Green) BS-791850
...
634A
WASHER, Sealing (Foam) Included in Carburetor Kit-Part No. 491509 BS-691872
...
642
COVER, Air Cleaner BS-691207
...
643
RETAINER, Air Filter BS-496700
...
725
SHIELD, Heat (20) BS-280866
...
918
GASKET, Breather Passage (Cylinder To Impulse Pump)(Cut To Required Length) BS-791760
