42C777-1238-99 Briggs and Stratton Engine

Model: 42C777-1238-99

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

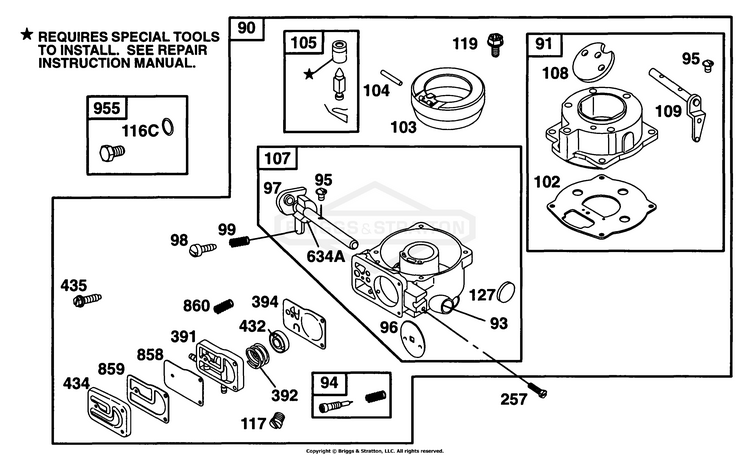

Carburetor Assy

...
...
90
CARBURETOR BS-693480
...
91
CARBURETOR BS-694026
...
93
BUSHING, Throttle Shaft BS-690513
...
94
VALVE, Idle Mixture Included in Carburetor Kit-Part No. 491509 BS-491538
...
95
SCREW (Throttle Valve) BS-691437
...
96
VALVE, Throttle BS-691727
...
97
SHAFT-THROTTLE BS-690629
...
98
SCREW (8-32 X 5/8) BS-691615
...
99
KIT, Idle Speed BS-693942
...
102
GASKET, Carburetor Body Included in Carburetor Kit-Part No. 491509 BS-273186S
...
104
PIN, Float Hinge Included in Carburetor Kit-Part No. 491509 BS-691775
...
105
KIT, Needle/Seat (Gravity Feed) Included in Carburetor Kit-Part No. 491509 BS-394682
...
107
BODY, Lower Carburetor BS-491543
...
108
VALVE, Choke BS-223534
...
109
SPRING, Valve BS-691957
...
116C
WASHER, Sealing Included in Gasket Set-Part No. 495868 BS-691319
...
117
JET, Main (High Altitude) BS-231333
...
117
JET, Main BS-231338
...
119
SCREW (Upper To Lower Carburetor Body) BS-691090
...
127
PLUG-WELCH Included in Carburetor Kit-Part No. 491509 BS-691739
...
257
SCREW BS-690316
...
391
BODY, Fuel Pump BS-691896
...
392
SPRING, Pump Diaphragm Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397 BS-691801
...
394
DIAPHRAGM-CARB. Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397 BS-272638S
...
432
CAP-SPRING Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397 BS-690766
...
434
COVER, Diaphragm BS-690434
...
435
SCREW BS-691085
...
634A
WASHER, Sealing (Foam) Included in Carburetor Kit-Part No. 491509 BS-691872
...
858
DIAPHRAGM, Carburetor Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397 BS-691871
...
859
GASKET, Carburetor Pump Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397 BS-691873
...
860
SPRING, Diaphragm Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397 BS-691799
...
955
PLUG, Carburetor (Solenoid Hole) BS-397882
