42C777-1238-99 Briggs and Stratton Engine

Model: 42C777-1238-99

Back To Assemblies

Save Part Not Listed?
product name

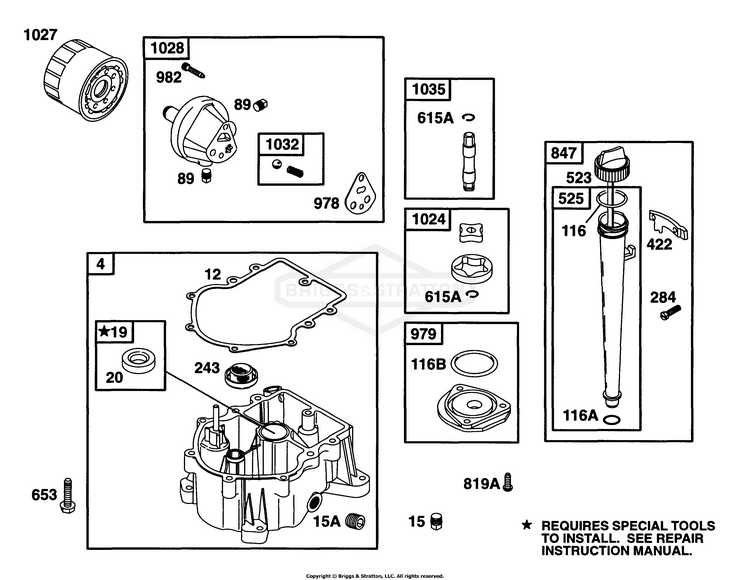

Sump Base, Oil Grp

...
...
4
SUMP, Engine BS-492575
...
12
GASKET, Crankcase (.005) Included in Gasket Set-Part No. 495868 BS-271188
...
12
GASKET, Crankcase (.009) Included in Gasket Set-Part No. 495868 BS-271189
...
12
GASKET, Crankcase (.015) Included in Gasket Set-Part No. 495868 BS-692292
...
15A
PLUG, Oil Drain (Flush) BS-691680
...
15
PLUG, Oil Drain (Square Head) BS-690946
...
19
KIT, Bushing/Seal (PTO Side) BS-399264
...
89
PLUG (1/8) BS-794903
...
116B
SEAL, O-Ring (Oil Pump Cover) Included in Gasket Set-Part No. 495868 BS-690589
...
116A
SEAL, O-Ring Included in Gasket Set-Part No. 495868 BS-692532
...
116
SEAL, O-Ring (Oil Fill) Included in Gasket Set-Part No. 495868 BS-691870
...
243
SCREEN, Oil Pump BS-690770
...
284
SCREW (Tapping) BS-691044
...
422
BRACKET-OIL FILL BS-691176
...
523
DIPSTICK BS-691385
...
525
TUBE, Dipstick BS-690823
...
615A
RETAINER BS-692334
...
653
WASHER BS-691261
...
653
SCREW (Crankcase Cover) BS-691103
...
653
STUD (2 1/2) BS-691695
...
819A
SCREW BS-690336
...
847
DIPSTICK/TUBE ASSEMBLY BS-495715
...
978
GASKET, Oil Adapter Included in Gasket Set-Part No. 495868 BS-691313
...
979
COVER, Oil Pump BS-492197
...
982
SCREW BS-690332
...
1024
PUMP-OIL BS-794644
...
1027
FILTER, Oil (2 1/4) BS-492932S
...
1028
ADAPTER, Oil Filter BS-491721
...
1032
SPRING, Compression BS-491710
...
1035
SHAFT, Pump BS-693158
