42C777-1238-99 Briggs and Stratton Engine

Model: 42C777-1238-99

Back To Assemblies

Save Part Not Listed?
product name

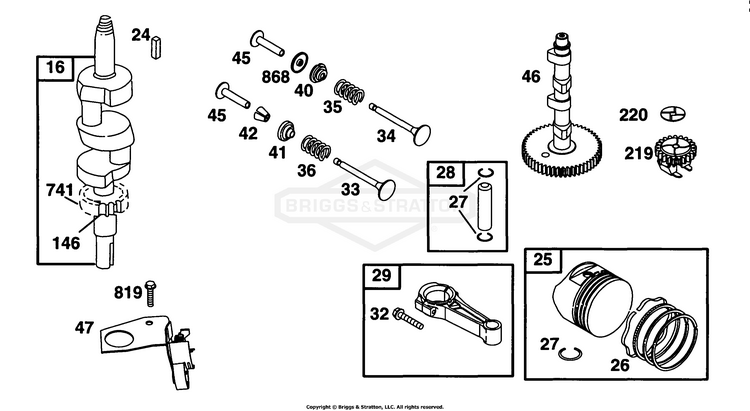

Piston Grp, Crankshaft, Cam

...
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY (Standard) BS-498584
...
25
PISTON ASSEMBLY (.010 Oversize) BS-498585
...
25
PISTON ASSEMBLY (.020 Oversize) BS-498586
...
25
PISTON ASSEMBLY (.030 Oversize) BS-498587
...
26
SET, Ring (Standard) BS-394959
...
26
SET, Ring (.010 Oversize) BS-394960
...
26
SET, Ring (.020 Oversize) BS-394961
...
26
SET, Ring (.030 Oversize) BS-394962
...
27
LOCK, Piston Pin Used Before Code Date 96043000 BS-691792
...
27
LOCK, Piston Pin BS-691299
...
28
PIN, Piston Used Before Code Date 96043000 BS-299691
...
28
PIN, Piston (.005 Oversize) Used Before Code Date 96043000 BS-391286
...
28
PIN, Piston (Standard) BS-498319
...
28
PIN, Piston (.005 Oversize) BS-498320
...
29
ROD, Connecting (Standard) BS-394306
...
29
ROD, Connecting (.020 Undersize) BS-397158
...
32
SCREW BS-691133
...
34
VALVE-INTAKE BS-691804
...
35
SPRING, Valve (Intake) BS-691605
...
36
SPRING, Valve (Exhaust) BS-691597
...
40
RETAINER, Valve (Valves With Groove In Stem) BS-690656
...
41
RETAINER, Valve (Exhaust Valve) (Exhaust) BS-691939
...
42
KEEPER, Valve (Exhaust) BS-494553
...
46
CAMSHAFT BS-213520
...
47
GEAR, Governor BS-691964
...
146
KEY, Woodruff BS-691639
...
219
GEAR, Governor BS-793338
...
220
WASHER BS-690412
...
741
GEAR, Timing BS-691285
...
819
SCREW BS-690353
...
868
SEAL, Valve Included in Valve Overhaul Gasket Set-Part No. 498047 BS-692324
