42917x8B Murray - Lawn Tractor (1996)

Model: 42917x8B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

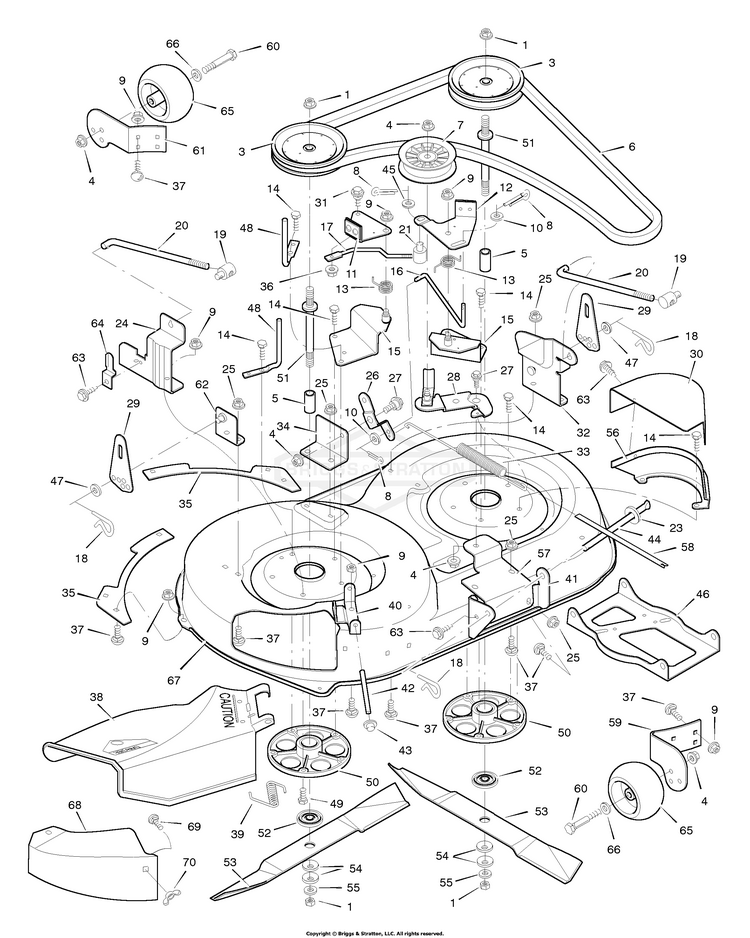

Mower Housing

...
...
1
Nut, Hex BS-15X121
...
3
Pulley, Jackshaft BS-092853MA
...
4
NUT, CNTR LCK, 3/8-16 BS-703893
...
5
Spacer BS-092850
...
6
Belt, Blade Drive BS-037X75A
...
7
PULLEY, IDLER BS-091801MA
...
8
PIN, COTTER, 3/32X.75 BS-703312
...
9
NUT, HEX FLNG,5/16-18 BS-704067
...
10
Washer BS-017X46 Z
...
11
Brake Assembly, Right BS-092413E701MA
...
12
Brake Assembly, Left BS-092411E701MA
...
13
Spring, Torsion BS-166X27MA
...
14
Bolt, Hex BS-0025X6MA
...
15
Bracket Assembly, Brake BS-092415E701MA
...
16
Rod, Brake BS-92421 Z
...
17
Rod, Cross Link BS-92420 Z
...
18
PIN, 3/32 X 1.6 BS-703300
...
19
NUT, Adjusting BS-092132ZMA
...
20
Rod, Adjuster BS-092134 Z
...
21
Nut, Adjustable BS-021920ZMA
...
23
Washer BS-17X103MA
...
24
Bracket, Right BS-092402E701MA
...
25
NUT, 5/16-18, GR5 BS-703409
...
26
Bracket, Pivot BS-092033SEMA
...
27
Bolt, Carriage BS-009X39MA
...
28
Arm Assembly, Idler BS-92032E701
...
29
Plate, Adjuster BS-093203E701MA
...
30
Cover, Pulley BS-92417E701
...
31
Bolt, Shoulder BS-009X40MA
...
32
Bracket Assembly, Left Lifter BS-093275E701MA
...
33
Spring, Extension BS-165X72MA
...
34
Bracket, Pivot BS-92407E701
...
35
Plate BS-092426E701MA
...
36
NUT .25-20 FLANGELOCK BS-015X89MA
...
37
BOLT BS-703159
...
38
Deflector Assembly, Chute BS-092465SE
...
39
Spring, Torsion BS-0166X4MA
...
40
Bracket, Hinge BS-91765E701
...
41
Bracket, Front Hanger BS-092405E701MA
...
42
Rod, Deflector BS-091767 Z
...
43
PUSHNUT, 3/8 BS-703948
...
44
Rod, Hanger BS-091739 Z
...
45
Washer BS-17X124MA
...
46
Hanger, Front BS-092119SEMA
...
47
Washer BS-017X91MA
...
48
ROD, BELT GUIDE BS-092424E701MA
...
49
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
50
Housing, Jackshaft BS-092573
...
51
Jackshaft BS-092849MA
...
52
Adapter, Blade BS-092466MA
...
53
Blade, 42" (Left) BS-056252E701MA
...
--
Blade, 42" (Right) BS-092545E701MA
...
54
Washer, Belleville BS-17X166MA
...
55
Washer BS-17X154
...
56
Bracket, Pulley Cover BS-92416E701
...
57
Bracket, Idler Mount BS-092406E701MA
...
58
Indicator, Plastic BS-092163MA
...
59
BRKT RH GAGE WHEEL 42 BS-1001260E701MA
...
60
BOLT, Gauge Wheel BS-094025MA
...
61
Bracket, Left Wheel BS-92423E701
...
62
Bracket Assembly, Right Lifter BS-092409E701
...
63
Screw BS-26X249MA
...
64
Guide, Belt BS-91973E701
...
65
Wheel, Gauge BS-092683MA
...
66
WASHER BS-703128
...
67
Housing, Blade BS-092401E701MA
...
--
Complete Mower Housing Assembly (Includes Ref. No. 1 - 67) BS-403347MA
...
68
Cover, Mulcher BS-56253E701
...
69
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
70
NUT BS-703141
