42917x6A Murray - Lawn Tractor (1996)

Model: 42917x6A

Back To Assemblies

Save Part Not Listed?
product name

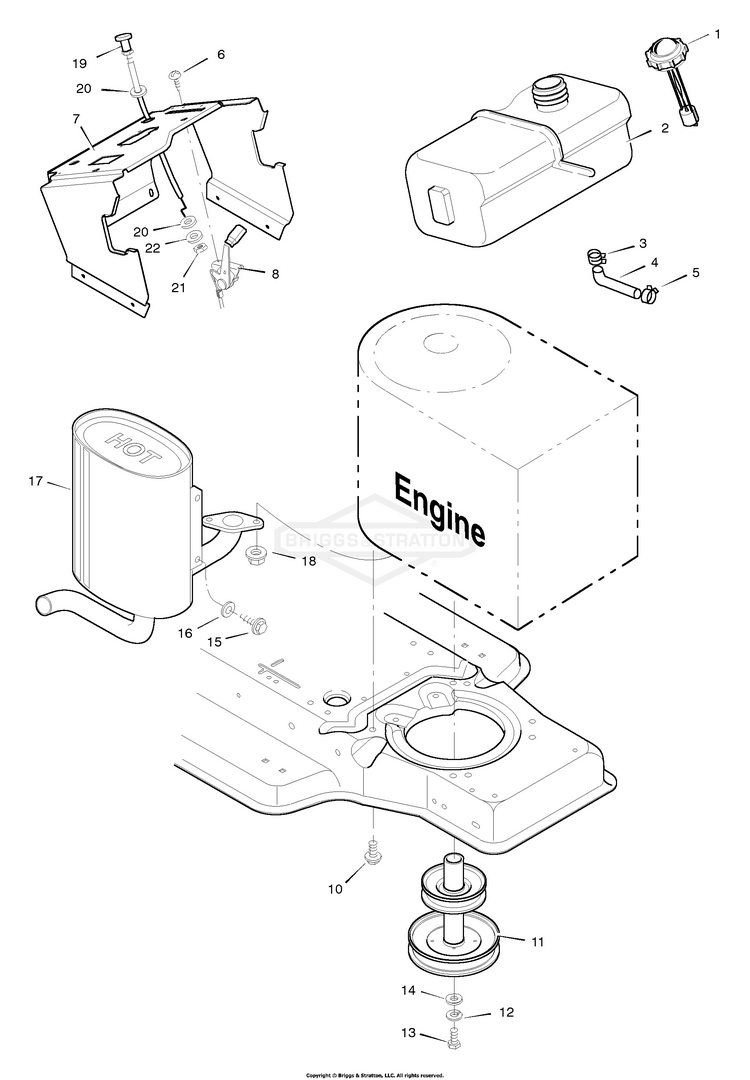

Engine Mount

...
...
1
Fuel Cap BS-091348MA
...
2
Fuel Tank BS-092597
...
3
Hose Clamp BS-091174
...
4
Fuel Line BS-090671MA
...
5
Hose Clamp BS-091174
...
6
Screw BS-26X201MA
...
7
Support, Dash BS-93136E701
...
8
Throttle Control BS-093294
...
10
Bolt, Engine Mount BS-180X17
...
11
Stack Pulley Assembly BS-093245 Z
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-0180X5
...
16
Washer BS-017X38 Z
...
17
Muffler BS-093296
...
18
Nut, Hex BS-0190X5
...
19
Cable, Choke BS-093293
...
20
WASHER BS-703326
...
21
Nut, Hex BS-015X33MA
...
22
WASHER, EXT, 3/8 BS-703864
