42589x8 Murray - Lawn Tractor (1999)

Model: 42589x8

Back To Assemblies

Save Part Not Listed?
product name

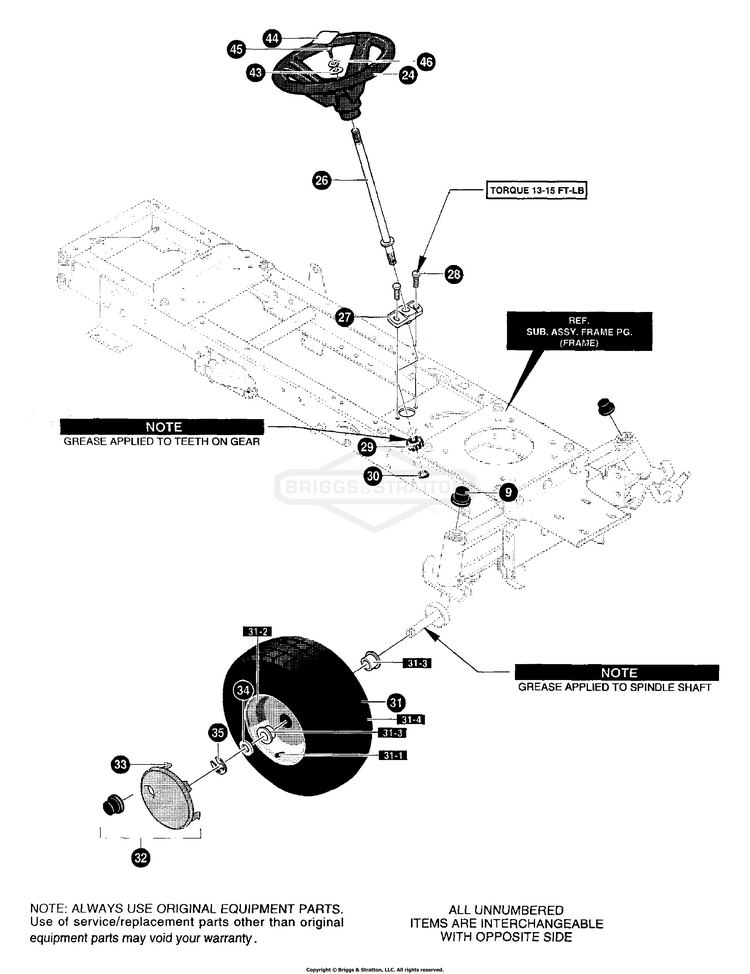

Steering Assembly

...
...
9
HUB CAP BS-094618MA
...
24
STEERING WHEEL BS-095184
...
26
SHAFT, STEERING BS-094520
...
27
BEARING-LOWER BS-094124MA
...
28
SCREW, 5/16-18 x 0.75 HHWATAPSGIBP BS-711606MA
...
29
GEAR PINNION BS-094122
...
30
RING, RET E.54ID .59SH (11X25) BS-710102
...
31
TIRE & RIM 15X6-6 BS-692639
...
31-1
VALVE STEM BS-338512
...
31-2
RIM, CARLISLE BS-338517MA
...
31-3
BEARING BS-338513
...
31-4
TIRE, 15X6X6 BS-338515
...
32
HUB CAP, W/O HOLE BS-094480
...
33
CLIP, HUBCAP TINN BS-306669
...
34
WASHER, FLAT,.765X1.81X.059 BS-711758
...
35
"E" RING .574 IDX.050/.750SH 11X3 BS-710103
...
43
FLATWASHER.281X1.25X.06 BS-711720MA
...
44
INSERT, STEERING WHEEL BS-711325MA
...
45
SCREW, 1/4-20X.75 BS-711719
...
46
WASHER (18x32) BS-710249
