42589x8 Murray - Lawn Tractor (1999)

Model: 42589x8

Back To Assemblies

Save Part Not Listed?
product name

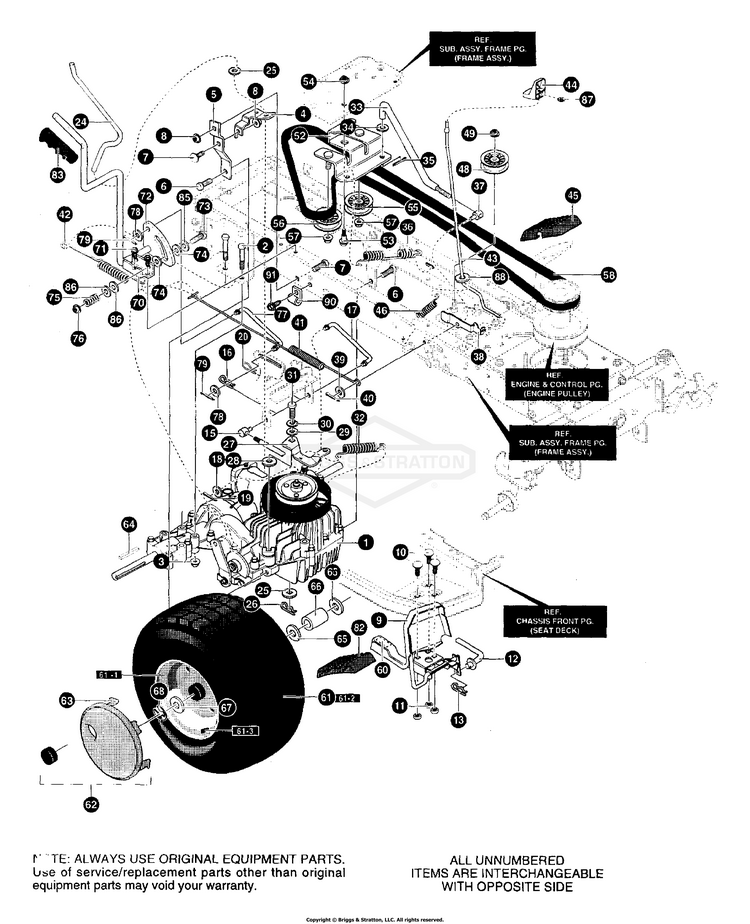

Motion Drive Assembly

...
...
2
SCREW, 5/16-18 x 2.50 BS-711669
...
3
NUT, 5/16-18 WDFLLK BS-711634MA
...
4
BRACKET, DISCONNECT BS-94429-821
...
5
TORQUE STRAP BS-94432-821
...
6
SCREW, 5/16-18 x 0.75 WAHHTAP BS-710268
...
7
BOLT, 5/16-18X.63 CARRLN BS-711661
...
8
NUT, 5/16-18 WDFLLK BS-711634MA
...
9
ASSEMBLY, PEDAL (PEERLESS) ** BS-94422-821
...
10
BOLT, 5/16-18X.75 CARRSN BS-711688MA
...
11
NUT, 5/16-18 HEXWDFLLK WHIZ BS-711633
...
12
ROD, PEDAL LINK (PEERLESS) ** BS-95278
...
13
HAIR PIN BS-711676
...
15
ADJUSTING NUT 1/2-13 BS-711594
...
16
PIN, 3/32 X 1.6 BS-703300
...
17
ROD HYDRO LINK (PEERLESS) ** BS-95279
...
18
WASHER, FLAT (17X91) BS-711617
...
19
PIN, COTTER .094DIAX.75 30X20 BS-711614
...
20
PIN, HAIR (31X4) BS-711676
...
24
ROD DISCONNECT BS-95298
...
25
FLATWASHER.344X.62X.06 BS-711644MA
...
26
PIN, COTTER.094DIAX.75 30X20 BS-711614
...
27
ARM DISCONNECT BS-95299
...
28
WASHER .388/.393SQ.X1.00X.065 BS-710346
...
29
WASHER, FLAT.256X.75X.130Z BS-710657
...
30
WASHER, (18X32) BS-710249
...
31
NUT BS-712174
...
32
SCREEN-OUTLET BS-710329
...
33
ROD, CLUTCH BS-95297
...
34
WASHER, FLAT .344 x .62 x .06 BS-711644MA
...
35
PIN, COTTER .094DIAX.75 30X20 BS-711614
...
36
SPRING, CLUTCH VST205 HYDRO BS-710707
...
37
NUT, ADJUSTING BS-711596
...
38
LATCH, PARK BRAKE BS-690048
...
39
WASHER, FLAT .406X.81X16GA BS-711623
...
40
PIN, COTTER .094DIAX.75 30X20 BS-711614
...
41
SPRING, Extension BS-ORG-710333
...
42
SPRING, TENS 3.984X.530 BS-710353
...
43
ROD, PARKING BRAKE BS-095108
...
44
KNOB, PARKING BRAKE BS-095315MA
...
45
PAD, CLUTCH/BRAKE DELUX BS-094630
...
46
SPRING, TENSION BS-711560
...
48
Pulley BS-421409MA
...
49
NUT, 3/8-16 HWDFLLK MACK 15X84 BS-711622
...
52
ASM BRACKET IDLER BS-95305
...
53
BOLT .50X.75 HHSH 3/8-16 9X39 BS-711613MA
...
54
NUT, 3/8-16 HWDFLLK MACK 15X84 BS-711622
...
55
Pulley BS-421409MA
...
56
PULLEY, V-IDLER 3- BS-091178
...
57
NUT, 3/8-16 HWDFLLK MACK 15X84 BS-711622
...
58
BELT, MOTION DRIVE HYDRO 37X61 BS-710531
...
60
PAD, TOE SANDPIPER BS-093249
...
61
TIRE & RIM 20X10-8 BS-692300
...
61-1
RIM BS-338524
...
61-2
TIRE 20X10-8 BS-338527
...
61-3
VALVE STEM BS-338512
...
62
HUB CAP 8' W/O HOLE BS-094481
...
63
CLIP, HUBCAP TINN BS-306669
...
64
KEY, SQUARE .187SQX2.25LG BS-52928MA
...
65
WASHER, FLAT .765 x 1.62 x .065 Z BS-711648MA
...
66
SPACER,.87X1.78 BS-95274MA
...
67
WASHER, FLAT .765 x 1.81 x .059 BS-711758
...
68
RING, RETEX.57X.05TRU5133-75 BS-710103
...
70
BRACKET. MOUNT HAND CONTROL BS-94793-821
...
71
SCREW 5/16-18X.75 HHWATAP BS-711606MA
...
72
ASM LEVER HAND CRUISE BS-95306
...
73
BOLT.375X1,59 HHSH 5/16-18X.5 BS-711599
...
74
WASHER, FRICTION FABOND NF343 BS-314944
...
75
SPRING - COMP.875LONGX.0915 WIRE BS-335689
...
76
NUT, 5/16-18 WDFLLK (15X88) BS-711634MA
...
77
CYLINDER ASSEMBLY BS-699505
...
78
WASHER, FLAT .344 x .62 x .06 Z BS-711644MA
...
79
PIN, COTTER .094DIAX.75 30X20 BS-711614
...
82
PAD, SPEED CONTROL PEDAL BS-094516
...
83
GRIP, HD HYD 7/16" ID BS-094498
...
85
WASHER, FLAT .390 x 1.25 x .119 BS-711589
...
86
WASHER, FLAT .406 x .81 x .066 BS-71072
...
87
PUSHNUT, .240DIA. STUD BS-711691MA
...
88
WASHER BS-703332
...
90
WIRE RETAINER BS-711742
...
91
SCREW, 5/16-18 x 0.75 HHWATAP BS-711606MA
