42587x50D Murray - Lawn Tractor (2001)

Model: 42587x50D

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

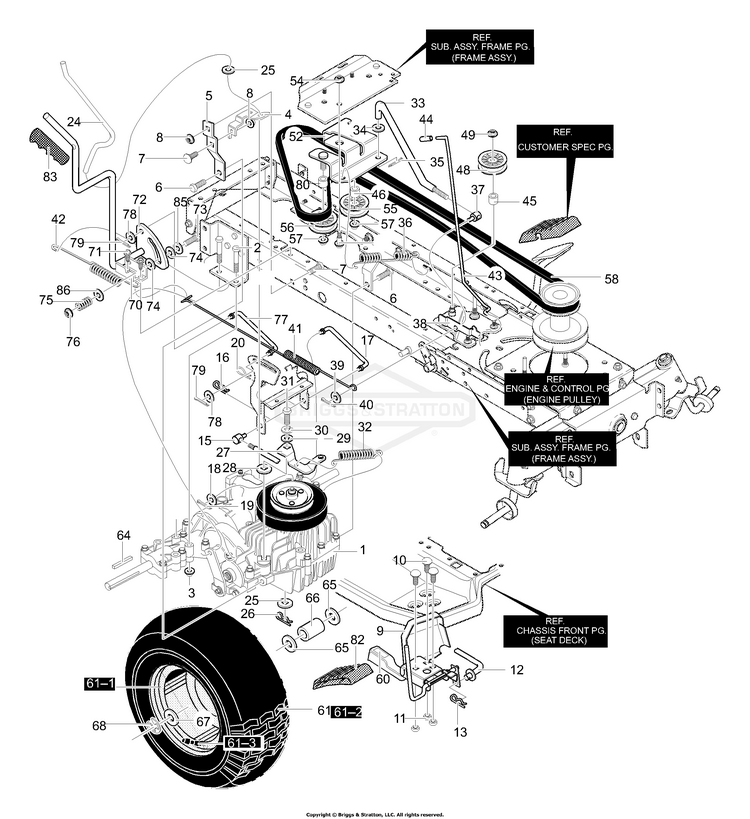

Motion Drive

...
...
2
Screw, 5/16-18 x 2.50 BS-711669
...
3
Nut, 5/16-18 Wdfllk BS-711634MA
...
4
Bracket, Disconnect BS-94429-821
...
5
Torque Strap BS-94432-821
...
6
Screw, 5/16-18 x 0.75 BS-710268
...
7
Bolt, 5/16-18x.63 BS-711661
...
8
Nut, 5/16-18 Wdfllk BS-711634MA
...
9
Pedal Assy., Hydro BS-690013-821
...
10
Bolt, 5/16-18x.75 BS-711688MA
...
11
Nut, 5/16-18 BS-710026
...
12
Rod, Pedal Link BS-95278
...
13
Hair Pin BS-711767
...
15
Adjust Nut 1/2-13 BS-711594
...
16
PIN, 3/32 X 1.6 BS-703300
...
17
Rod Hydro Link BS-95279
...
18
Flat washer BS-711617
...
19
Cotter Pin BS-071081
...
20
Hair Pin BS-711676
...
24
Rod, Disconnect BS-094428 Z
...
25
Washer, Flat BS-711644MA
...
26
Pin, Cotter BS-071081
...
27
Arm Disconnect BS-95299
...
28
Washer BS-17X148MA
...
29
Flat washer BS-710657
...
30
Washer BS-710249
...
31
Screw, 1/4-28x.75 BS-01X145MA
...
32
SCREEN-OUTLET BS-710329
...
33
Rod, Clutch BS-95297
...
34
Flat washer BS-711644MA
...
35
Cotter Pin BS-071081
...
36
Spring, Clutch BS-710707
...
37
Nut, Adjusting BS-711596
...
38
Latch, Park Brake BS-95290
...
39
Flat washer BS-711623
...
40
Cotter Pin BS-071081
...
41
SPRING, Extension BS-ORG-710333
...
42
Spring, Tension BS-710353
...
43
Park Brake Rod BS-094568
...
44
Grip BS-091079MA
...
45
Spacer 1/2 to 17MM BS-690369MA
...
46
Spacer 1/2 to 17MM BS-690369MA
...
48
Pulley, Idler BS-690409MA
...
49
Nut, 3/8-16 BS-711920MA
...
52
Asm., Bracket Idler BS-95305
...
53
Bolt, 3/8-16 BS-711613MA
...
54
Nut, 3/8-16 BS-711622
...
55
Pulley, Idler BS-690409MA
...
56
Pulley, Idler BS-690410MA
...
57
Nut, 3/8-16 BS-711920MA
...
58
Belt, Motion Drive BS-037X61MA
...
60
Pad, Toe Sandpaper BS-093249
...
61
Tire & Rim BS-692511
...
61-1
Valve Stem BS-338512
...
61-2
Rim BS-338524
...
61-3
Tire BS-338525
...
64
Key, Square BS-52928MA
...
65
Flat washer BS-711648MA
...
66
Spacer .87x1.78 BS-95274MA
...
67
Flat washer BS-711758
...
68
RING, E .750D .050T BS-0011X3MA
...
70
Bracket, Mount Hand Ctrl BS-94793-821
...
71
Screw, 5/16-18 x 0.75 BS-711606MA
...
72
Assy., Lever Hand Ctrl BS-094792 Z
...
73
Bolt, HHSH 5/16-18 BS-711599
...
74
Washer, Friction BS-314944
...
75
Spring, Compression BS-335689
...
76
Nut, 5/16-18 BS-711634MA
...
77
CYLINDER ASSEMBLY BS-699505
...
78
Flat washer BS-711644MA
...
79
Cotter Pin BS-071081
...
80
Spacer, 1/2 to 17MM BS-690369MA
...
82
Pad, Speed Ctrl Pedal BS-094516
...
83
SCREW BS-94507
...
85
Flat washer BS-711589
...
86
Flat washer BS-710083
...
--
HUB CAP BS-094618MA
