42587x50B Murray - Lawn Tractor (2000)

Model: 42587x50B

Back To Assemblies

Save Part Not Listed?
product name

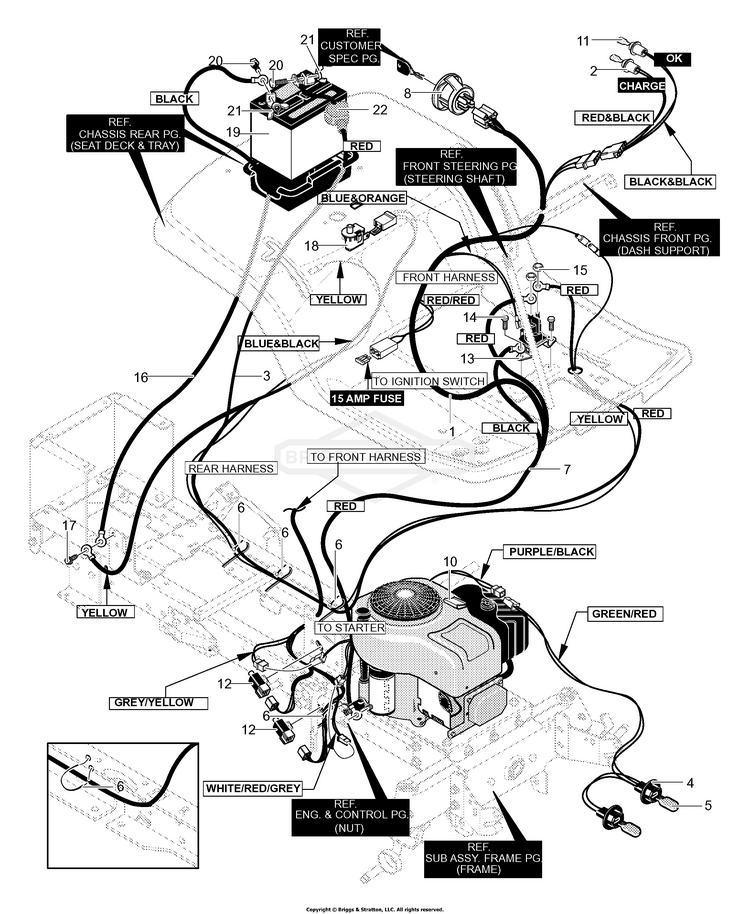

Electrical Assembly

...
...
1
Wire Harness w/Indicator BS-95374
...
2
Harness, Ind. PTO/CHG BS-690611
...
3
Wire Harness, Rear BS-340530
...
4
Wire Harness for Headlights BS-94103
...
5
MANUAL-OPERATOR BS-52572GS
...
6
Cable Tie BS-57444
...
7
Wire, Lead Solenoid to Starter BS-711579
...
8
Switch, Ignition BS-094762
...
10
Wire Clip, Adhesive BS-055939MA
...
11
Bulb, Indicator BS-57769MA
...
12
Switch, Limit BS-094136MA
...
13
Solenoid BS-094613
...
14
Screw 1/4x.50 BS-711619
...
15
Nut, 1/4-20 BS-711632
...
16
Ground Wire BS-710228
...
17
Screw, 1/4x.75 BS-711760
...
18
SWITCH, SEAT BS-7023354YP
...
19
Battery 6 Plate BS-092693
...
20
BOLT, 1/4-20X0.625 BS-703841
...
21
Wing Nut BS-014X76
...
22
Battery Boot BS-335417
...
--
15 Amp Fuse BS-302031MA
