42587x50B Murray - Lawn Tractor (2000)

Model: 42587x50B

Back To Assemblies

Save Part Not Listed?
product name

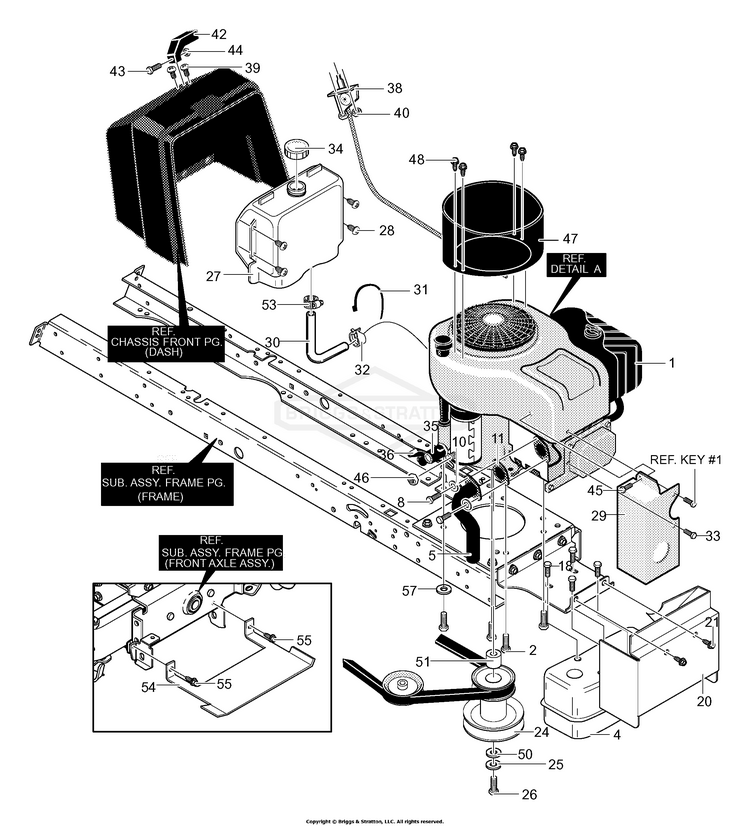

Engine And Control Assembly

...
...
--
Clip, Speed BS-094951
...
2
SCREW-HEX WSHR HD TAP BS-2828635SM
...
4
Muffler, Single Cylinder BS-094654MA
...
5
Exhaust Tube BS-094657
...
8
Screw, 5/16-18 x 0.75 BS-313676
...
10
Washer, Hvsptlk BS-313679
...
11
GASKET, Exhaust BS-692236
...
18
SCREW.25-20 S-T BS-26X263MA
...
20
Heat Shield, Lower Front BS-95439-821
...
21
Screw, 5/16-18 x 0.75 BS-711606MA
...
24
Stack Pulley BS-690450
...
25
Washer, Regsptlk BS-120383
...
26
Screw, 7/16-20 BS-01X169
...
27
Tank, Fuel 2 Gal. BS-314991MA
...
28
Screw, #12x.50 BS-26X214MA
...
29
Heat Shield Side BS-333772-821
...
30
Gas line 12 Inches BS-42258
...
31
Cable Tie BS-57444
...
32
Clamp, Fuel BS-336890
...
33
Screw, 1/4-20x.50 BS-711592
...
34
Gas Cap 2.0 BS-690615
...
35
Oil Drain Valve Assembly BS-325547MA
...
36
Cap, Oil Drain Valve BS-327422
...
38
Throttle Control BS-95370MA
...
39
Screw, 10-24x.63 BS-711749
...
40
Nut, #10-24 BS-711754
...
42
STUD BS-691695
...
43
Screw, #8-32 BS-711750
...
44
Nut, #8-32 BS-711748
...
45
Screw, 10-16x.50 Drill BS-711593
...
46
Nut, 1/4-20 BS-711601
...
47
Plenum BS-690059
...
48
Screw, 10-16x.50 Drill BS-711593
...
50
WASHER.46.97.25 FLAT BS-17X170MA
...
51
Spacer, Sleeve BS-093077MA
...
53
CLAMP, SCREW TYPE BS-47345MA
...
54
Shield, Anti-Dehydration BS-95192-821
...
55
Screw, 5/16-18 x 0.75 BS-711606MA
...
57
Washer, Exlk BS-711668
