42587x50B Murray - Lawn Tractor (2000)

Model: 42587x50B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

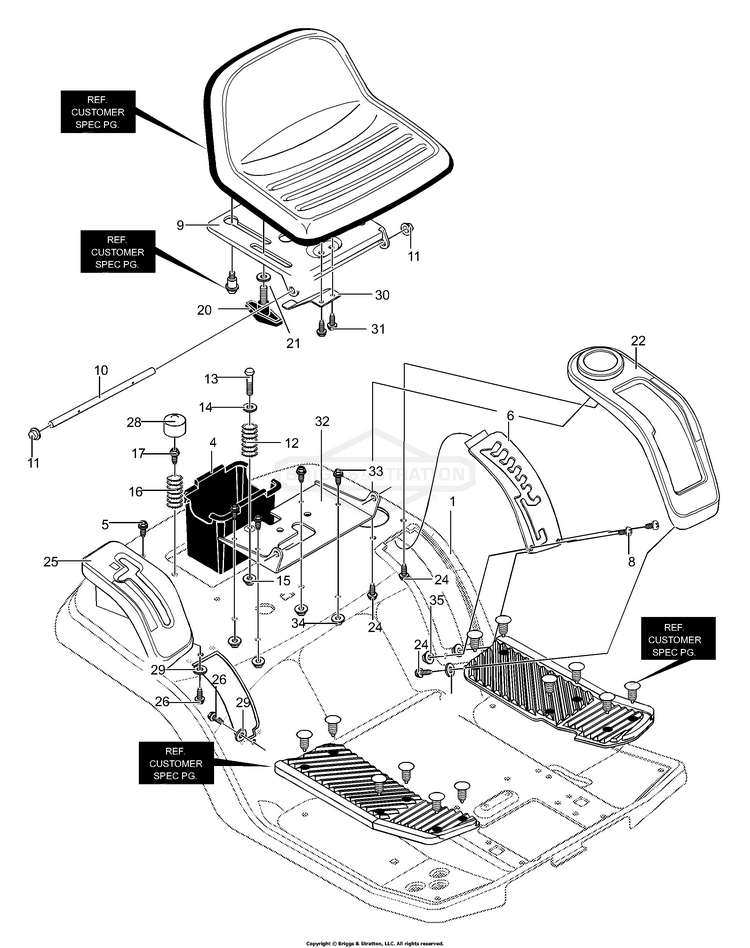

Rear Chassis Assembly

...
...
1
Seat Deck BS-94628-860
...
4
Battery Container BS-690424MA
...
5
SCREW.25-20 S-T BS-26X263MA
...
6
Plate, Lift Detent BS-94886-821
...
8
Screw, 10-24x.500 BS-711629
...
9
Seat Support BS-94154-860
...
10
Hinge, Seat Pivot BS-95294
...
11
PUSHNUT, 3/8 BS-703948
...
12
Comp. Spring BS-710136-821
...
13
Shoulder Bolt, 1/4-20 BS-711610
...
14
Washer Cup BS-094155 Z
...
15
Nut, 1/4-20 BS-302635
...
16
Comp. Spring BS-710109-821
...
17
Screw, 5/16-18 x 0.75 BS-711606MA
...
20
Wing Bolt 5/16-18x.50 BS-1001054MA
...
21
WASHER, FLAT 5/16 BS-704015
...
22
Detent Cover w/cup BS-094491
...
24
Screw, 1/4-15 BS-711671MA
...
25
Shift Cover Hand/Foot BS-094495
...
26
Screw, 1/4-15x.44 BS-711671MA
...
27
WASHER BS-703332
...
29
WASHER BS-703332
...
30
Spring - Leaf BS-094057MA
...
31
Screw, 1/4-20x.50 BS-711592
...
32
Bracket, Pivot Seat BS-94153-860
...
33
CAPSCREW,5/16-18X.625 BS-703822
...
34
NUT, HEX, 5/16-18 BS-703902
...
35
Nut, #10-24 Locknut BS-711842
