42587x50B Murray - Lawn Tractor (2000)

Model: 42587x50B

Back To Assemblies

Save Part Not Listed?
product name

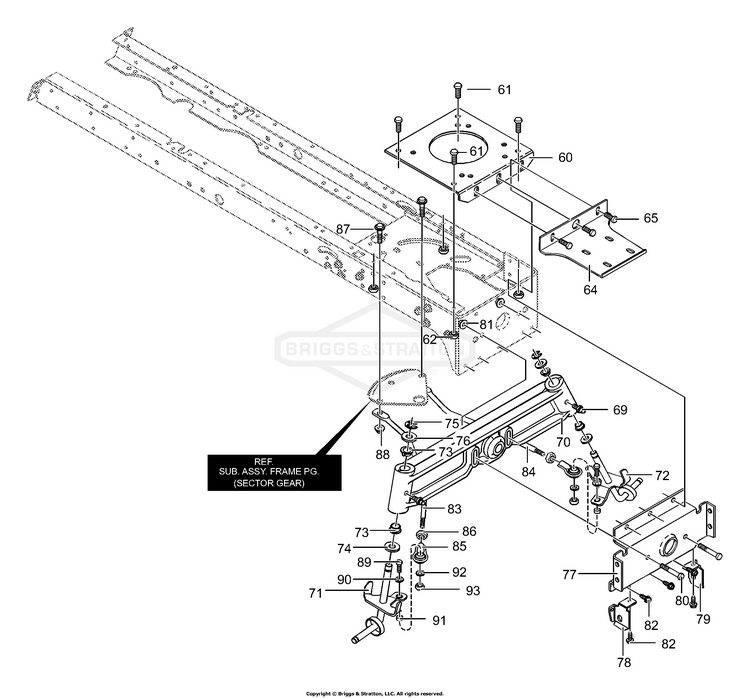

Frame Assembly (part 2)

...
...
60
Engine Plate BS-94006
...
61
Screw, .312-18x.75 BS-26X249MA
...
62
NUT, HEX FLNG,5/16-18 BS-704067
...
64
Bracket, Muffler Mount BS-094306
...
65
Screw, .312-18x.75 BS-26X249MA
...
69
Zerk, Grease Fitting BS-706
...
70
Axle, Cast Machined BS-343710
...
71
SCREW BS-691107
...
72
STUD BS-691690
...
73
Bearing, Spindle BS-092527MA
...
74
WASHER.76-1.2 13G FL BS-17X113MA
...
75
RING, E .750D .050T BS-0011X3MA
...
76
Flat washer BS-17X195MA
...
77
Hanger, Axle BS-94007
...
78
SCREW BS-93920
...
79
Hanger, Deck LH BS-94027
...
80
Screw, 5/16-24 x 2.75 BS-01X146MA
...
81
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
82
Screw, .5/16-24X2.75 BS-26X249MA
...
83
Rod, Drag Link, RH BS-94767
...
84
Rod, Drag Link, LH BS-094768
...
85
Tie Rod End 1/2-20 BS-094766MA
...
86
Nut, 1/2-20 Hxjam BS-7058
...
87
Bolt, HHSH BS-009X57MA
...
88
NUT, CNTR LCK, 3/8-16 BS-703893
...
89
Bolt, HHSH 3/8-16 BS-310364
...
90
Flat washer BS-711762
...
91
Spacer, Sleeve BS-319618MA
...
92
Flat washer BS-301188MA
...
93
NUT, 3/8-16 BS-703333
