42586x8A Murray - Lawn Tractor (1998)

Model: 42586x8A

Back To Assemblies

Save Part Not Listed?
product name

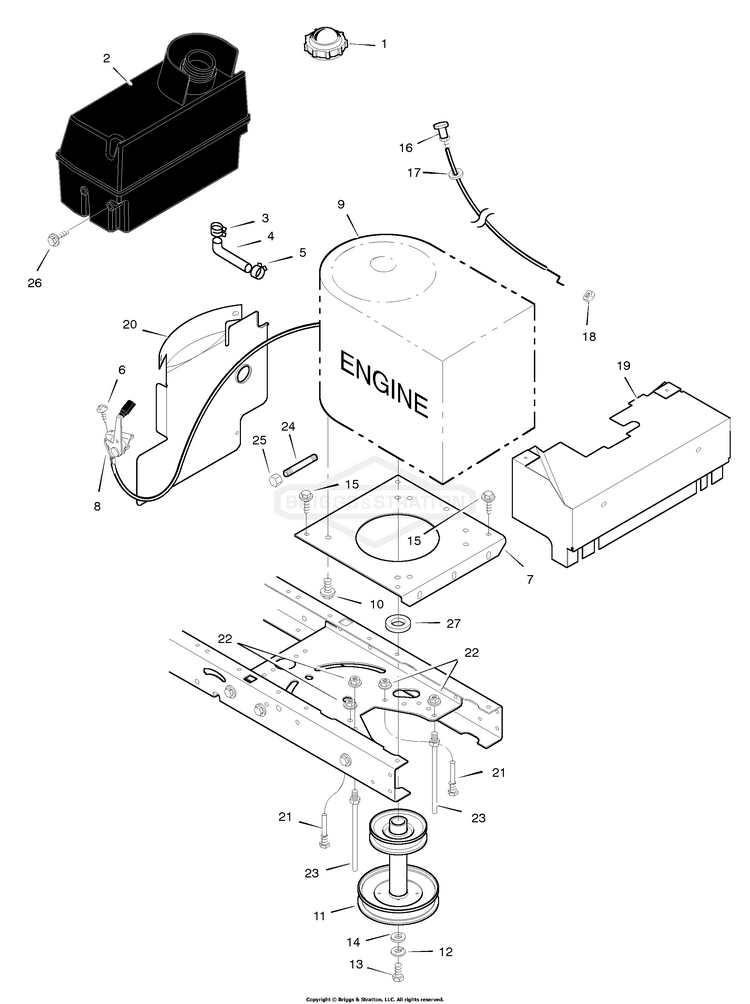

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
Fuel Tank BS-094086
...
3
CLAMP, Hose BS-791850
...
4
Fuel Line BS-023717
...
5
CLAMP, Hose BS-791850
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-094006E700
...
8
Throttle Control BS-093165MA
...
--
MUFFLER BS-690838
...
--
GASKET, Exhaust BS-692282
...
--
Liner, Port (Muffler) BS-095200
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
Stack Pulley Assembly BS-094407 Z
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
16
Choke BS-091326
...
17
WASHER, EXT, 3/8 BS-703864
...
18
Nut BS-015X33MA
...
19
Baffle, Front Engine BS-93188E700
...
20
Baffle, Rear Engine BS-093078E701
...
21
GUIDE SCREW - ZINC BS-093349MA
...
22
NUT, 5/16-18, GR5 BS-703409
...
23
Guide, Belt BS-094066MA
...
24
Pipe, Oil Drain BS-092279
...
25
Cap, Oil Drain BS-021651
...
26
Screw BS-26X253MA
...
27
Spacer BS-093077MA
