42581x58A Murray - Lawn Tractor (2001)

Model: 42581x58A

Back To Assemblies

Save Part Not Listed?
product name

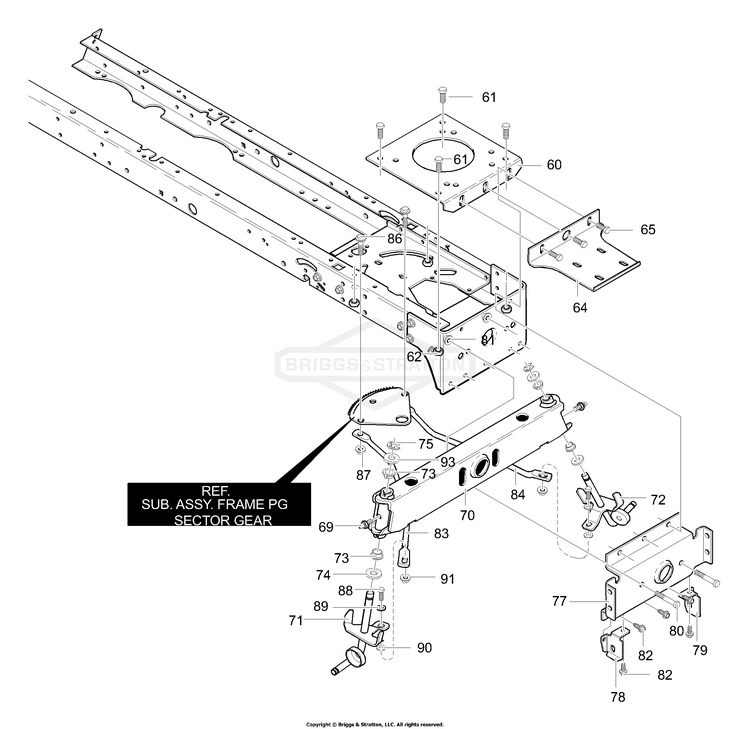

Frame Assembly (part 2)

...
...
60
Engine Plate BS-94006
...
61
Screw, .312-18x.75 BS-26X249MA
...
62
NUT, HEX FLNG,5/16-18 BS-704067
...
64
RING, GROOVED, KARCHER BS-94306GS
...
65
Screw, .312-18x.75 BS-26X249MA
...
69
Zerk, Grease Fitting BS-706
...
70
Axle, Cast Machined BS-690211
...
71
Spindle, RH BS-94178
...
72
Spindle, LH BS-94179
...
73
Bearing, Spindle BS-690150MA
...
74
WASHER.76-1.2 13G FL BS-17X113MA
...
75
RING, E .750D .050T BS-0011X3MA
...
77
Hanger, Axle BS-94007
...
78
SCREW BS-93920
...
79
Hanger, Deck LH BS-94027
...
80
SCREW, 5/16-24 x 2.75 BS-01X146MA
...
81
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
82
Screw, .5/16-24X2.75 BS-26X249MA
...
83
Drag Link, RH BS-95328
...
84
Drag Link, LH BS-95329
...
86
Shoulder Bolt BS-009X57MA
...
87
NUT, CNTR LCK, 3/8-16 BS-703893
...
88
CAPSCREW,3/8-16X1.5 BS-703406
...
89
WASHER, FLAT BS-710083MA
...
90
WASHER, FLAT .406X.81 BS-71072MA
...
91
NUT, CNTR LCK, 3/8-16 BS-703893
...
93
Flat washer BS-17X195MA
