42581x58A Murray - Lawn Tractor (2001)

Model: 42581x58A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

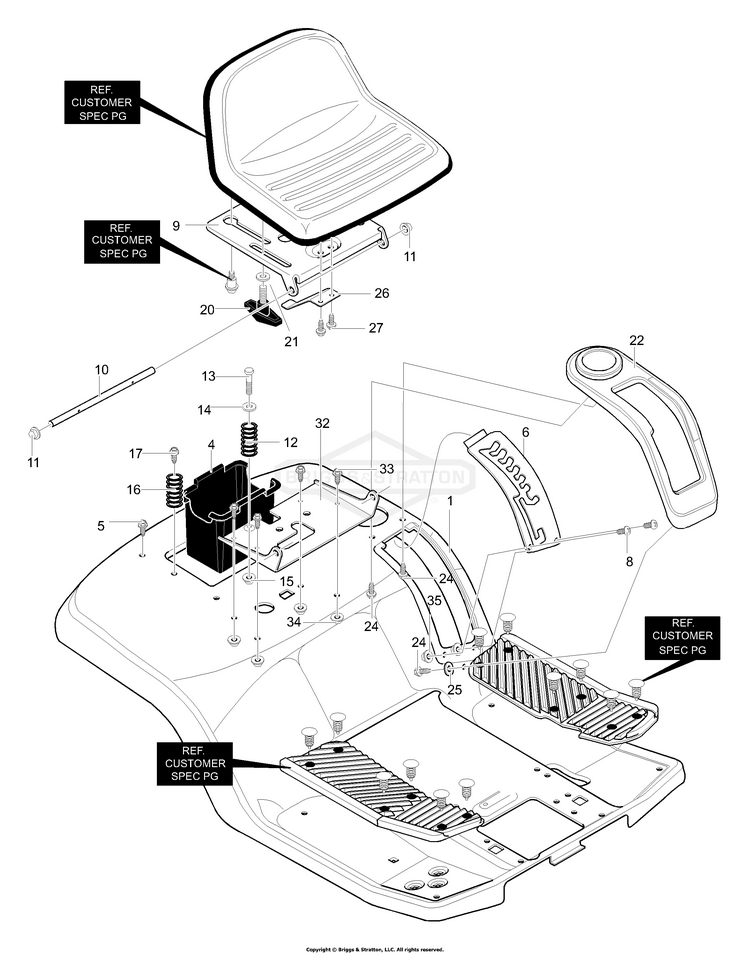

Rear Chassis Assembly

...
...
1
Seat Deck BS-94629-860
...
4
Battery Container BS-690424MA
...
5
SCREW.25-20 S-T BS-26X263MA
...
6
Plate, Lift Detent BS-94886-821
...
8
Screw, 10-24x.500 BS-711629
...
9
Seat Support BS-94154-860
...
10
Hinge Seat Pivot BS-95294
...
11
Push Cap Nut BS-711627MA
...
12
Comp. Spring BS-710136-821
...
13
Shoulder Bolt, 1/4-20 BS-711610
...
14
SHROUD 2-PC KARCH EL BS-94293GS
...
15
Nut, 1/4-20 BS-302635
...
16
Comp. Spring BS-710109-821
...
17
Screw, 5/16-18 x 0.75 BS-711606MA
...
20
Wing Bolt 5/16-18X.50 BS-711747MA
...
21
Flat washer BS-711644MA
...
22
Detent Cover w/cup BS-94491
...
24
Screw, 1/4-15 BS-711671MA
...
25
WASHER BS-703332
...
26
BEARING- LOWER BS-94124
...
27
Screw, 1/4-20X.50 BS-711592
...
32
Pivot Seat Bracket BS-94153-860
...
33
Screw, 5/16-18 x 0.75 BS-711606MA
...
34
Nut, 5/16-18 Wdfllk BS-711634MA
...
35
Nut, #10-24 Locknut BS-711842
