42581x58A Murray - Lawn Tractor (2001)

Model: 42581x58A

Back To Assemblies

Save Part Not Listed?
product name

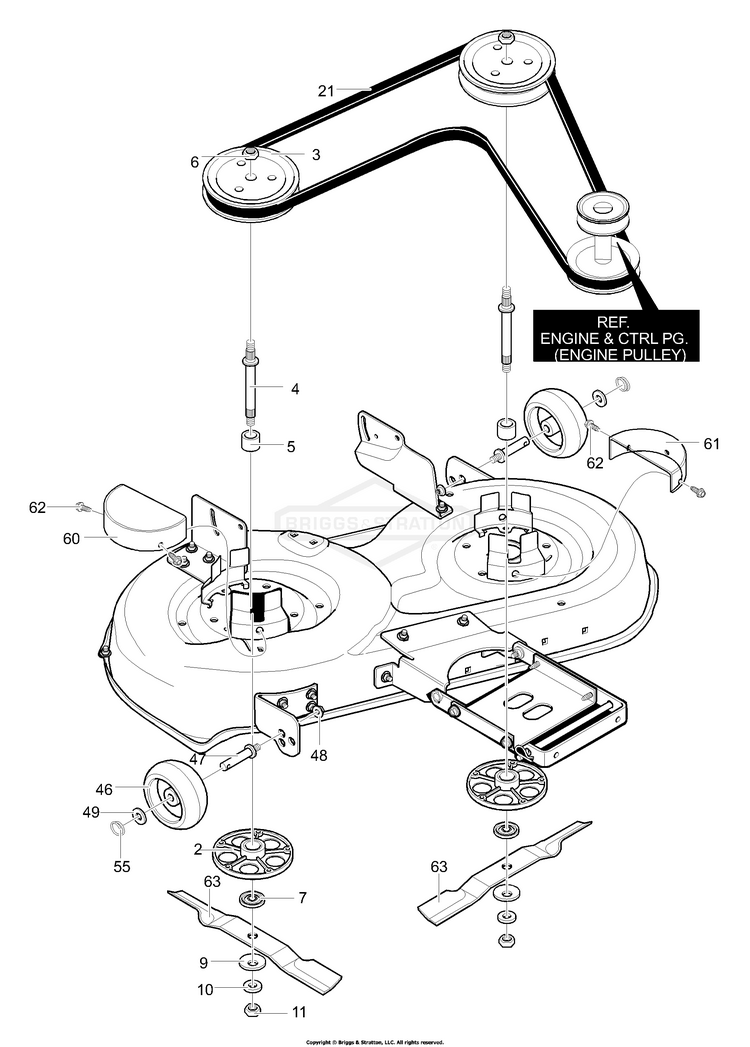

Deck Assembly (part 3)

...
...
2
Jackshaft Assembly BS-1001046
...
3
Pulley, Split BS-95308MA
...
4
Jackshaft BS-94129
...
5
Spacer BS-92850
...
6
Nut BS-15X121
...
7
Adapter, Deck/Blade BS-1001035
...
9
Washer BS-17X166MA
...
10
Washer BS-17X165MA
...
11
Nut, .56-18 Regular BS-15X100MA
...
21
Belt, 42" Deck BS-710213
...
46
Wheel, Gage BS-092683MA
...
47
Bolt, SPSH 3/8-16 BS-711746
...
48
Nut, 3/8-16 BS-711622
...
49
Flat washer BS-711615MA
...
55
Ring, Locking BS-031X11MA
...
60
GUARD, Belt R.H. BS-94669E701MA
...
61
GUARD-BELT LH BS-094668E701MA
...
62
SCREW.25-20 S-T BS-26X263MA
...
63
Blade, 42" Low Lift BS-95102E701
