product name

42581x58A Murray - Lawn Tractor (2001)

Model: 42581x58A

Back To Assemblies

Save Part Not Listed?
product name

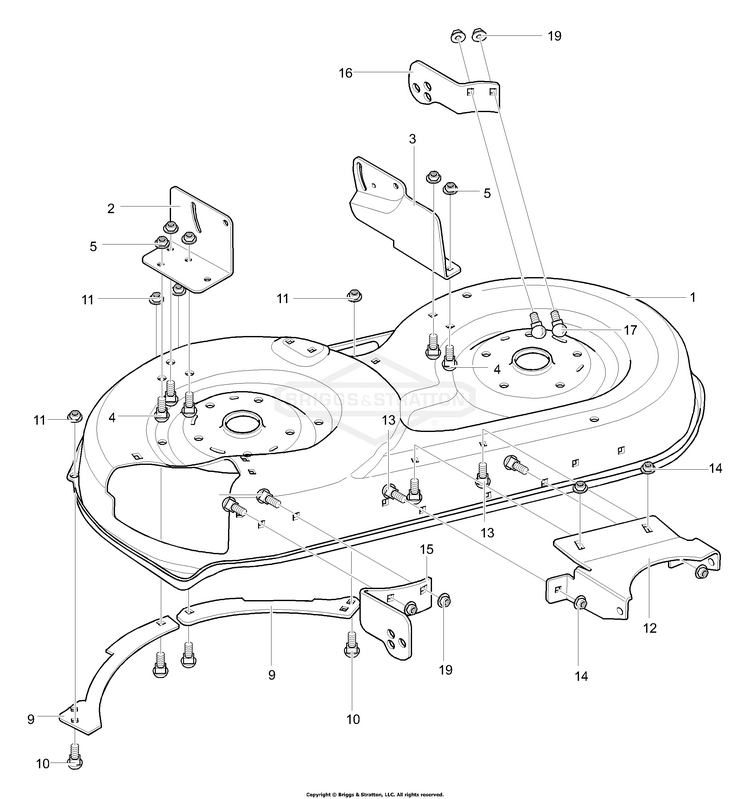

Deck Assembly (part 1)

...
...
1
Housing, Blade (Housing Only) BS-094188E701MA
...
2
Bracket, Deck RH BS-94191
...
3
Bracket, Deck LH BS-94192
...
4
BOLT BS-703159
...
5
NUT, 5/16-18, GR5 BS-703409
...
9
PLATE, Rear 42" BS-092426E701MA
...
10
BOLT BS-703159
...
11
NUT, HEX FLNG,5/16-18 BS-704067
...
12
Bracket, Front Deck BS-94190
...
13
BOLT BS-703159
...
14
NUT, 5/16-18, GR5 BS-703409
...
15
Bracket, 42" Deck RH BS-92422
...
16
Bracket, Left Wheel BS-092423E701MA
...
17
BOLT BS-703159
...
19
NUT, HEX FLNG,5/16-18 BS-704067
Schematic Image Zoomed
