42581x50D Murray - Lawn Tractor (2001)

Model: 42581x50D

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

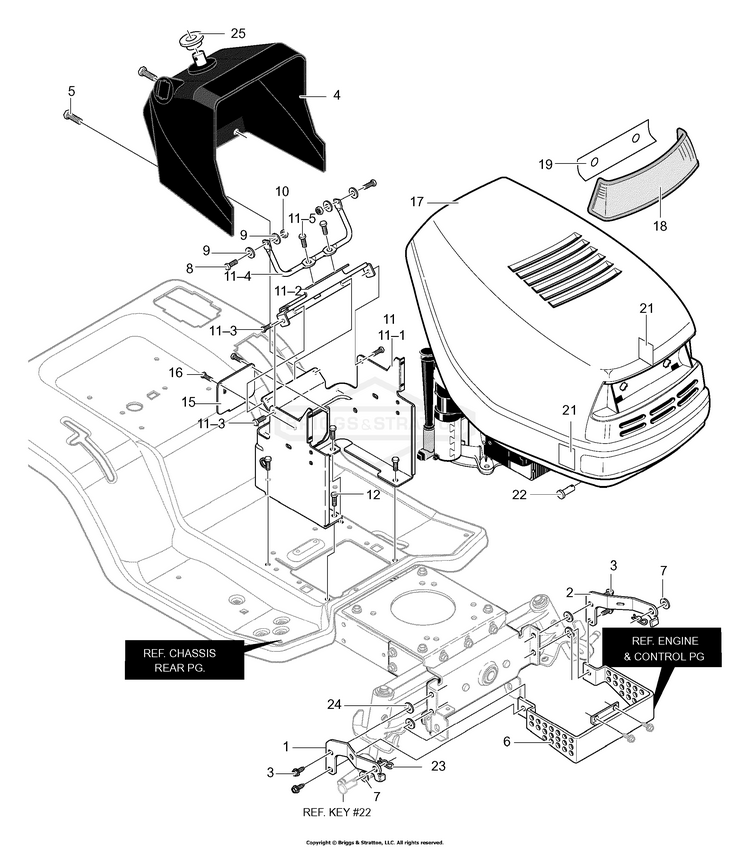

Chassis & Hood Assembly

...
...
1
Bracket, Hood RH BS-95413-821
...
2
Bracket, Hood LH BS-95414-821
...
3
Screw, 5/16-18 x 0.75 BS-26X249MA
...
4
Dash BS-690630
...
5
Screw, 1/4-14x.75 BS-26X239MA
...
6
Heat Shield Guard BS-95195-821
...
7
Washer, Flat Insulate BS-712480MA
...
8
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
9
WASHER BS-703332
...
10
Nut, 1/4-20 Reghexctrlk BS-73826
...
11
Assembly, Lower Console BS-341569-860
...
11-1
Tower, Lower Dash BS-95425
...
11-2
Support, Steering BS-95426
...
11-3
Screw, 1/4-20x.50 BS-710264
...
11-4
WLDMNT, HNDL BS-95406GS
...
11-5
Screw, 1/4-20x.50 BS-710264
...
12
Screw, 10-24x.50 BS-26X249MA
...
15
Panel, Access BS-94638-860
...
16
SCREW, Thread Forming BS-26X270MA
...
17
Hood BS-94984MA
...
18
Lens, Headlamp BS-302670MA
...
19
Foil, Lens BS-308492
...
21
Foil, Heat Reflector BS-301452MA
...
22
Pin, Clevis BS-711856MA
...
23
PIN, 3/32 X 1.6 BS-703300
...
24
Washer, Flat BS-712480MA
...
25
Bushing, Steering Shaft BS-95404
...
--
Instruction Book & Parts List BS-F-010737L
