42581x50C Murray - Lawn Tractor (2000)

Model: 42581x50C

Back To Assemblies

Save Part Not Listed?
product name

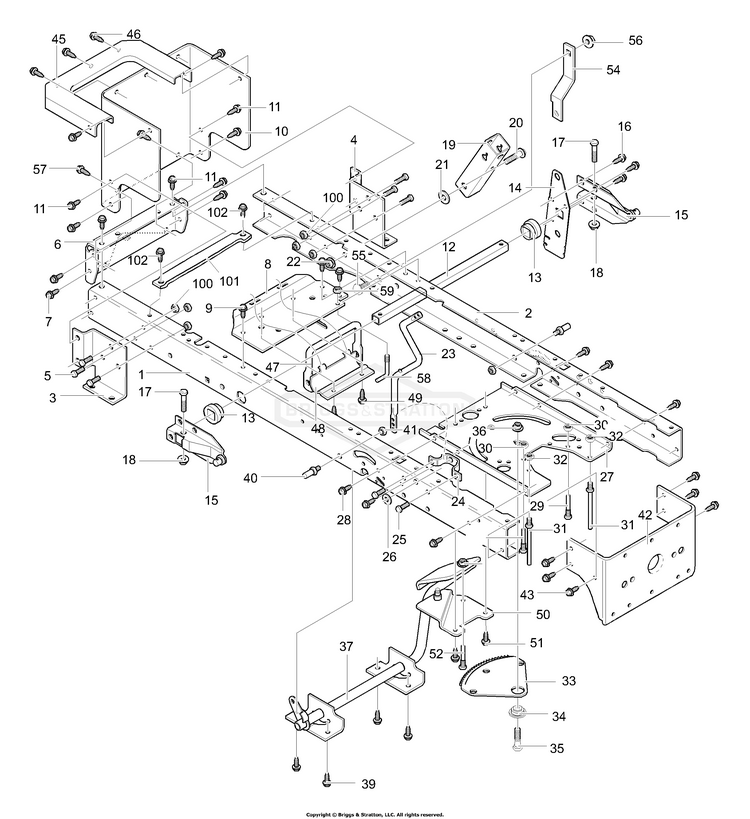

Frame Assembly (part 1)

...
...
1
Frame, Rail RH BS-95110
...
2
Frame, Rail LH BS-95111
...
3
Bracket, Transaxle RH BS-94184
...
4
Bracket, Transaxle LH BS-94185
...
5
Screw, .312-18x.75 BS-26X249MA
...
6
Plate BS-1001002
...
7
Screw , .312-18x.75 BS-26X249MA
...
8
Bracket, Idler/Trunnion BS-94431
...
9
Screw , .312-18x.75 BS-26X249MA
...
10
HEAD-CYLINDER BS-799072
...
11
Screw , .312-18x.75 BS-26X249MA
...
12
SCREW BS-690837
...
13
Bushing, Lift Arm BS-094065MA
...
14
Plate, Lift Arm BS-94030
...
15
Lever, Lift Arm BS-94180
...
16
Screw .31x.50 BS-026X49MA
...
17
Screw, .5/16-21x1.25 BS-001X74MA
...
18
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
19
Pivot Bracket BS-094015
...
20
Bolt, 3/8 HHSH BS-009X53MA
...
21
Flat washer BS-17X191MA
...
22
NUT, CNTR LCK, 3/8-16 BS-703893
...
23
PTO Crank BS-690394
...
24
Bracket, Bell Crank BS-94005
...
25
Screw, .312-18x.75 BS-26X249MA
...
26
Flat washer BS-120395
...
27
Steering Plate BS-1001024
...
28
Screw, .312-18x.75 BS-26X249MA
...
29
GUIDE SCREW - ZINC BS-093349MA
...
30
NUT, 5/16-18, GR5 BS-703409
...
31
Screw Guide BS-094066MA
...
32
NUT, 5/16-18, GR5 BS-703409
...
33
Gear Sector BS-094121MA
...
34
Bearing, Sector Gear BS-094123MA
...
35
BOLT BS-5025011X8FS
...
36
Nut, 5/16 Hkeps BS-15X113MA
...
37
Cl/Br Pedal Dlx BS-94632
...
39
Screw, .312-18x.75 BS-26X249MA
...
40
PIN, 3/8-16 BS-704054
...
41
Nut, 3/8-16 Hwdfl Whiz BS-45171MA
...
42
Bracket, Hanger Rear BS-94013
...
43
Screw, .312-18x.75 BS-26X249MA
...
45
SCREW BS-690367
...
46
SCREW, Thread Forming BS-26X270MA
...
48
Clamp, Trunnion BS-94434
...
49
Screw, 5/16-18 x 0.75 BS-26X249MA
...
50
SCREW BS-691685
...
51
Screw, 5/16-18 x 0.50 BS-26X277MA
...
52
GUIDE SCREW - ZINC BS-093349MA
...
53
NUT, 5/16-18, GR5 BS-703409
...
54
STRAP, TRANSAXLE, LH BS-7300845BMYP
...
55
BOLT BS-703159
...
56
NUT, HEX FLNG,5/16-18 BS-704067
...
57
SCREW-HEX WSHR HD TAP BS-2828635SM
...
58
Screw Guide BS-094781MA
...
59
NUT, 5/16-18, GR5 BS-703409
...
100
NUT, HEX FLNG,5/16-18 BS-704067
...
101
Brkt, Battery Support BS-690482
...
102
Screw, 5/16-18 x 0.75 BS-26X249MA
