42581x50C Murray - Lawn Tractor (2000)

Model: 42581x50C

Back To Assemblies

Save Part Not Listed?
product name

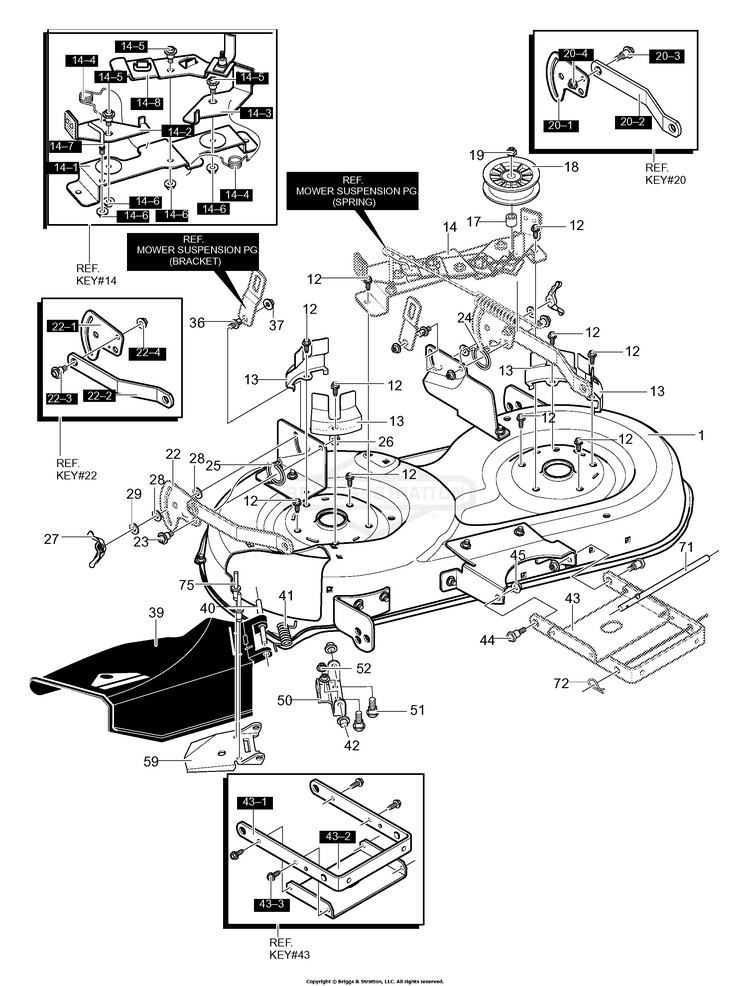

Deck Assembly (part 2)

...
...
1
Blade Housing Assembly BS-94189-821
...
12
SCREW-HEX WSHR HD TAP BS-2828635SM
...
13
Cover, Segment Belt Guide BS-94051-821
...
14
Asm., Brkt supt w/Brakes BS-690138-821
...
14-1
Bracket, Brake Mtg. BS-94193
...
14-2
SPACER, Fuel Tank BS-691633
...
14-3
Assy., Brake LH BS-94049
...
14-4
Torsion Spring BS-710227
...
14-5
BOOT-SPARK PLUG BS-710634
...
14-6
NUT, CNTR LCK, 3/8-16 BS-703893
...
14-7
Screw Guide BS-094781MA
...
14-8
Assy., Idler Arm BS-690408
...
14-9
NUT, HEX FLNG,5/16-18 BS-704067
...
17
Spacer, 1/2 to 17MM BS-690369MA
...
18
Idler Pulley BS-690451
...
19
Nut, 3/8-16 Hwdfllk Mack BS-711920MA
...
20
Asm., Plate Rear Sus. Brkt LH BS-341594-821
...
20-1
SCREW BS-690837
...
20-2
Suspension Bracket Rear BS-94055
...
20-3
Bolt, Shoulder BS-710095
...
20-4
Nut, 3/8-16 BS-710140
...
22
Assy, Plate,Rear Sus Bkt RH BS-341593-821
...
22-1
SCREW BS-690837
...
22-2
Suspension Bracket Rear BS-94055
...
22-3
Bolt, Shoulder BS-710095
...
22-4
Nut, 3/8-16 BS-710140
...
23
Bolt, Shoulder BS-711611
...
24
Spring, Torsion LH BS-710113
...
25
Spring, Torsion RH BS-710112
...
26
Nut, 3/8-16 BS-711622
...
27
Wingnut, 5/16-18 BS-711600
...
28
FRICTION PAD BS-094137MA
...
29
WASHER,FLAT .33 1. 16 BS-017X45MA
...
36
Pin, Hanger BS-711595
...
37
Nut, 3/8-16 BS-711622
...
39
Deflector Chute BS-094687MA
...
40
ROD, Deflector BS-094957ZMA
...
41
Spring, Torsion BS-710194
...
42
Nut, Push Cap BS-711627MA
...
43
Asm., Bracket & Stiffener BS-690058-821
...
43-1
Bracket, Front Suspension BS-94058
...
43-2
Stiffener BS-95057
...
43-3
Screw, 5/16-18 x 0.75 BS-26X249MA
...
44
BOLT-SHD.38-16X.499D BS-009X51MA
...
45
NUT, CNTR LCK, 3/8-16 BS-703893
...
50
Bracket, Chute Attach BS-94956-821
...
51
Carr. Bolt, 5/16-18x.63 BS-711661
...
52
Nut, 5/16-18 Wdfllk BS-711634MA
...
59
Deflector Support BS-94686-821
...
71
Rod, Hanger BS-95295
...
72
Hair Pin BS-711676
...
75
Rivet, Semi BS-711624MA
