42581x50C Murray - Lawn Tractor (2000)

Model: 42581x50C

Back To Assemblies

Save Part Not Listed?
product name

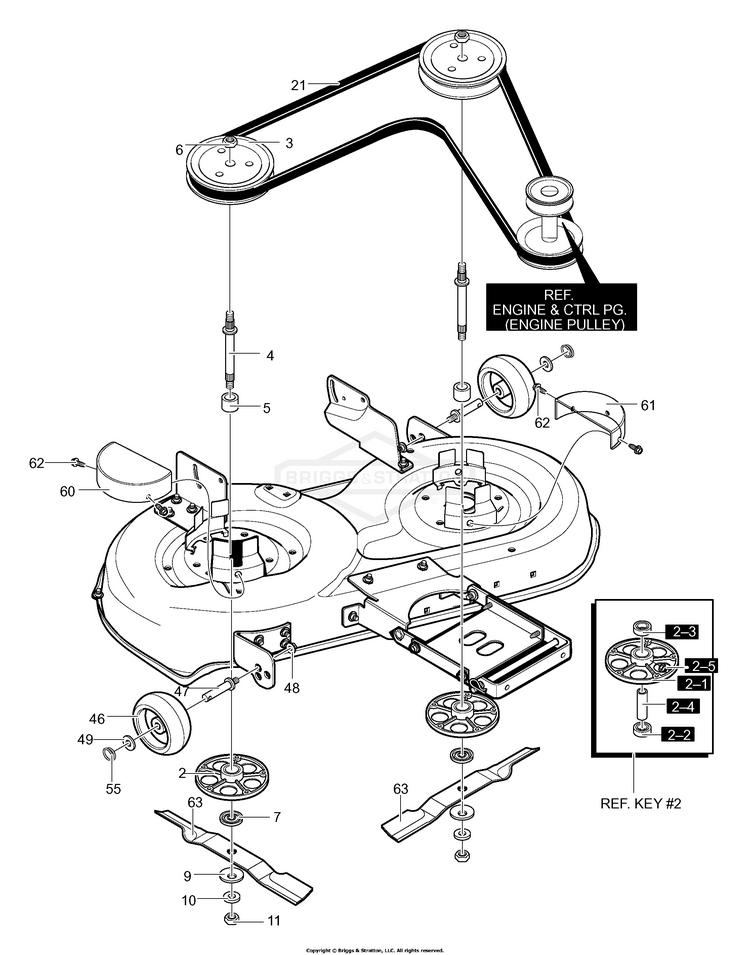

Deck Assembly (part 3)

...
...
2
Jackshaft Assembly BS-092574
...
2-1
Jackshaft Housing BS-092573
...
2-2
Bearing, Lower Jackshaft BS-092282MA
...
2-3
Bearing, Upper Jackshaft BS-092281MA
...
2-4
Spacer, .625x.875x1.71 BS-090904MA
...
2-5
Zerk, Grease BS-690501MA
...
3
Pulley, Split BS-95308MA
...
4
Jackshaft BS-094129
...
5
Spacer, .625x.875x1.85 BS-094130MA
...
6
Nut, 9/16-18 BS-711626
...
7
Adapter, Deck/Blade BS-092466MA
...
9
Washer BS-17X166MA
...
10
Washer BS-17X165MA
...
11
Nut, .56-18 Regular BS-15X100MA
...
21
Belt, 42" Deck BS-710213
...
46
Gauge Wheel BS-092683MA
...
47
Bolt, SPSH 3/8-16 BS-711746
...
48
Nut, 3/8-16 Wdfllk BS-711622
...
49
Flat washer BS-017X91MA
...
55
Circle Pin BS-031X11MA
...
60
GUARD, Belt R.H. BS-94669E701MA
...
61
GUARD-BELT LH BS-094668E701MA
...
62
SCREW.25-20 S-T BS-26X263MA
...
63
Blade, 42" Low Lift BS-690205E701MA
