42580x89A Murray - Lawn Tractor (2000)

Model: 42580x89A

Back To Assemblies

Save Part Not Listed?
product name

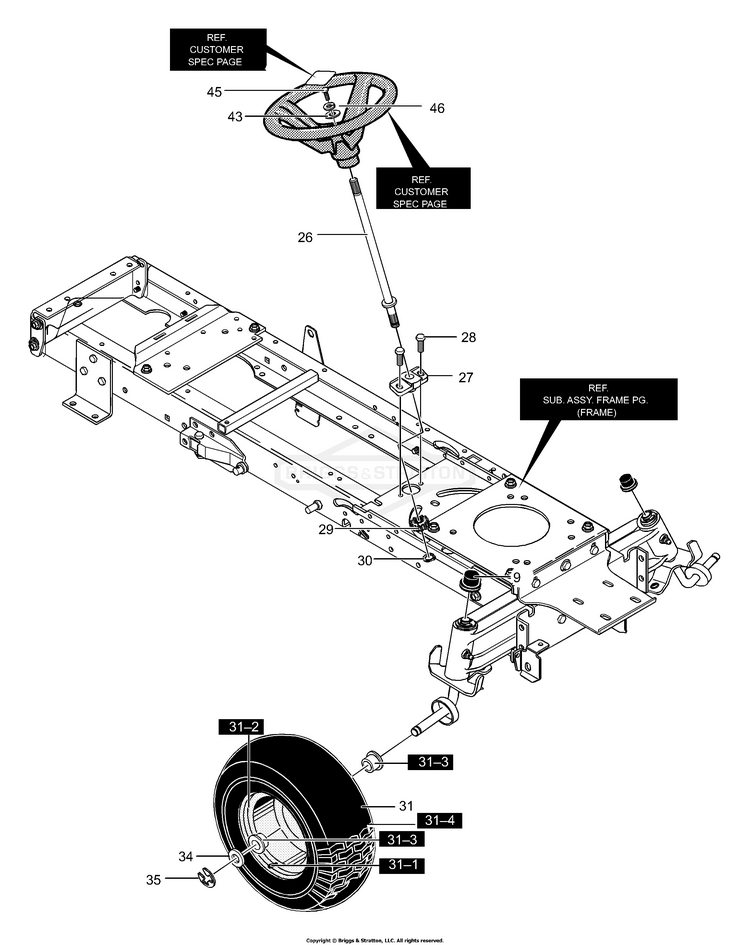

Steering

...
...
9
HUB CAP BS-094618MA
...
26
SHAFT, STEERING BOLT-ON BS-094520
...
27
BEARING-LOWER BS-094124MA
...
28
SCREW BS-711606MA
...
29
GEAR PINNION BS-094122
...
30
RING, RETAINER BS-710102
...
31
TIRE & RIM BS-692639
...
31-1
VALVE STEM BS-338512
...
31-2
RIM BS-338517MA
...
31-3
BEARING BS-338513
...
31-4
TIRE BS-338515
...
--
HUB CAP, 6" BS-304444
...
--
CLIP, HUB CAP BS-306669
...
34
WASHER, FLAT BS-711758
...
35
RING, E .750D .050T BS-0011X3MA
...
43
WASHER, FLAT BS-711720MA
...
45
SCREW, 1/4-20X .75 BS-711719
...
46
WASHER, (18X32) BS-710249
