42580x89A Murray - Lawn Tractor (2000)

Model: 42580x89A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

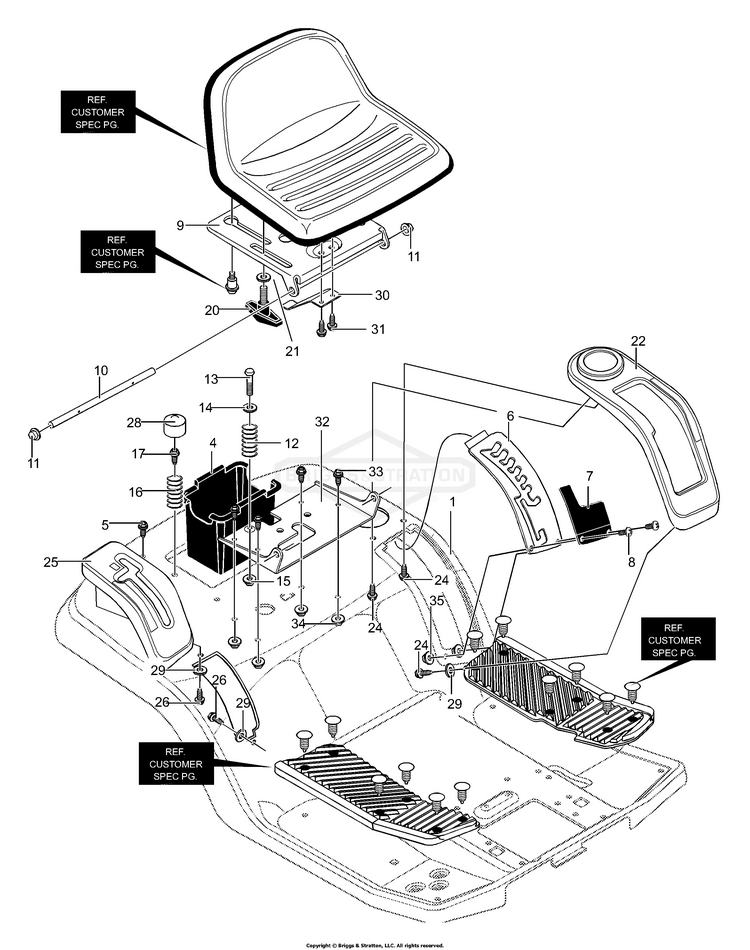

Rear Chassis Assembly

...
...
1
SEAT DECK-LARGE BS-94628-823
...
4
CONTAINER, BATTERY BS-690424MA
...
5
SCREW.25-20 S-T BS-26X263MA
...
6
PLATE LIFT DETENT BS-94194-821
...
7
LIFT DET LOCKOUT LG GREY BS-094492
...
8
SCREW BS-711679
...
9
SUPPORT, SEAT BS-94154-823
...
10
HINGE SEAT PIVOT BS-95294
...
11
NUT, PUSH CAP BS-711627MA
...
12
SPRING, COMPRESSION BS-710136-821
...
13
BOLT, SHOULDER BS-711610
...
14
WASHER CUP BS-95293
...
15
NUT BS-302635
...
16
SPRING, COMPRESSION BS-710109-821
...
17
SCREW BS-711606MA
...
20
BOLT, WING BS-711747MA
...
21
WASHER, FLAT BS-711644MA
...
22
DETENT COVER W/CUP BS-094491
...
24
SCREW BS-711671MA
...
25
SHIFT COVER BS-094495
...
26
SCREW, 1/4-15X0.44 BS-711671MA
...
27
WASHER BS-703332
...
28
CAP, HUB/SEAT SPRING BS-020107MA
...
29
WASHER BS-703332
...
30
SPRING - LEAF BS-094057MA
...
31
SCREW, 1/4-20X.50 BS-711592
...
32
BRACKET, PIVOT SEAT BS-94153-823
...
33
SCREW 5/16-18X.75 BS-711606MA
...
34
NUT, 5/16-18 BS-711634MA
...
35
NUT, #10-32 CTRLK B BS-314159MA
