42580x89A Murray - Lawn Tractor (2000)

Model: 42580x89A

Back To Assemblies

Save Part Not Listed?
product name

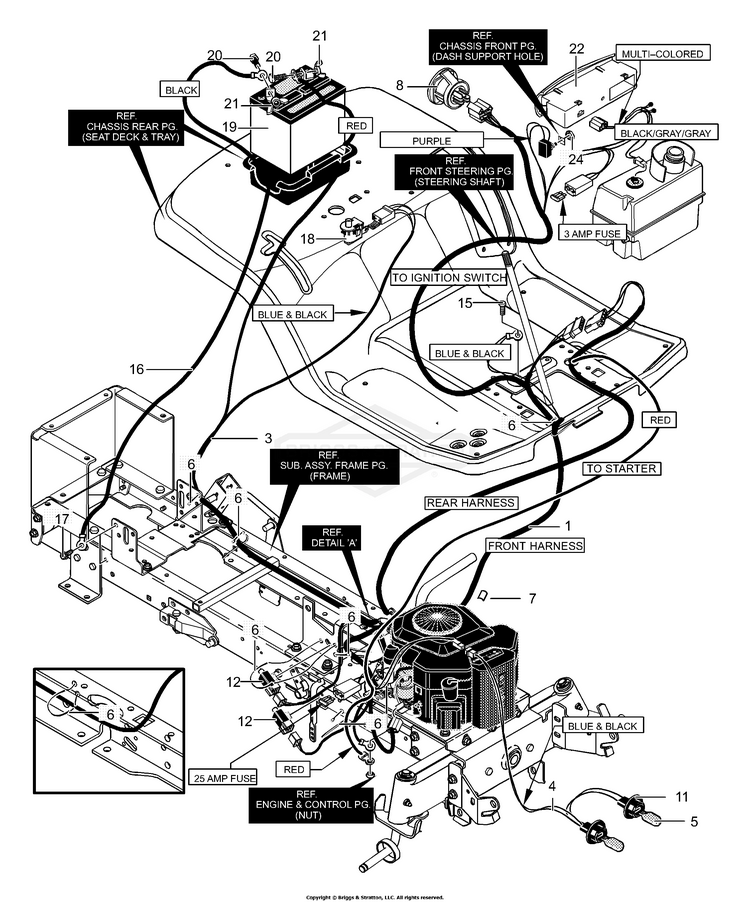

Electrical Assembly

...
...
1
SCREW BS-692559
...
3
WIRE HARNESS, REAR 20HP BS-94758
...
4
WIRE ASSEMBLY, HEADLIGHTS BS-094780
...
5
BULB-HEADLIGHT 1 BS-1677371SM
...
6
TIE, CABLE BS-57444
...
7
WIRE CLIP, ADHESIVE BS-055939MA
...
8
SWITCH, IGNITION BS-094762
...
11
SOCKET, LAMP BS-092372
...
12
SWITCH, SAFETY BS-094136MA
...
15
SCREW BS-711619
...
16
WIRE, GROUND BS-710228
...
17
SCREW BS-711619
...
18
SWITCH, SEAT BS-7023354YP
...
19
BATTERY BS-092693
...
20
PIN, HAIR BS-711682
...
21
NUT, WING 1/4-20 BS-711636
...
22
ELECTRONIC DIAG BS-094893
...
24
NUT, PLASTIC BS-711376
