42580x89A Murray - Lawn Tractor (2000)

Model: 42580x89A

Back To Assemblies

Save Part Not Listed?
product name

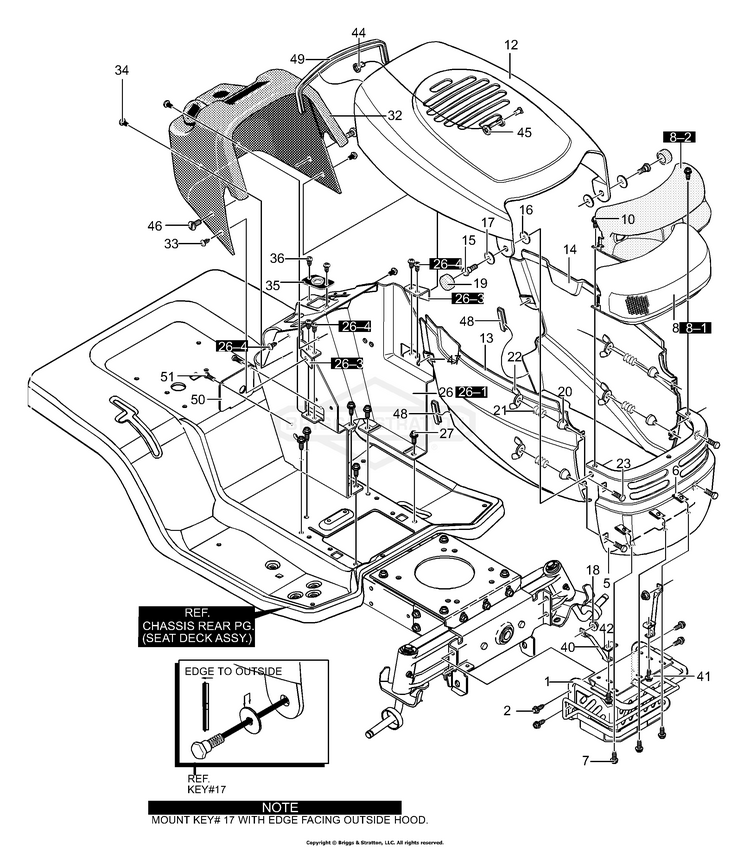

Chassis & Hood Assembly

...
...
1
ASSEMBLY, BUMP/GRILLE BS-94529-821
...
2
SCRW5/16-18X1.50 BS-711653
...
5
GRILLE BS-94455-823
...
6
NUT, "J" TINNERMAN BS-710313
...
7
SCREW.25-20 S-T BS-26X263MA
...
8
PIN, DETENT, W/LANYARD BS-95234GS
...
8-1
LENS BS-94459
...
8-2
REFLECTOR BS-94460
...
10
SCREW 1/4-14X.50 BS-710197
...
12
ASM., WELD HOOD H26 BS-690052-823
...
13
PANEL, SIDE RH BS-94458-823
...
14
PANEL, SIDE LH BS-94457-823
...
15
BOLT BS-711625
...
16
WASHER, PLASTIC BLACK BS-710067
...
17
PIVOT BASE GREY BS-094472
...
18
NUT, 3/8-16 BS-711622
...
19
PIVOT CAP GREY BS-94471MA
...
20
QUICK RELEASE-CAM BS-094474
...
21
SEAT DECK, LARGE BS-94628
...
22
NUT, WING 1/4-20 BS-325232MA
...
23
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
26
ASM., CONSOLE BS-95291-823
...
26-1
CONSOLE BS-095173
...
26-2
BRACKET, LEFT BS-094465
...
26-3
BRACKET, RIGHT BS-094464
...
26-4
SCREW BS-710196
...
27
SCRW 5/16-18X.75 BS-711606MA
...
32
DASH, H26 GREY BS-094939
...
33
SCREW, 10-24X.50 BS-711629
...
34
SCREW, 10-24X.50 BS-711629
...
35
STEERING BRACKET BS-094075
...
36
SCREW 1/4-14X.50 BS-710197
...
40
STRUT, H26 GRILLE BS-94519-823
...
41
SCREW.25-20 S-T BS-26X263MA
...
42
SPEED NUT BS-710979
...
44
LANYARD, H26 HOOD BS-643129
...
45
PUSHNUT BS-711677
...
46
SCREW, 1/4-20X0.63 BS-711674MA
...
47
NUT, "J" TINNERMAN BS-710313
...
48
TRIM PIECE PLASTIC GREY BS-095105
...
49
TRIM PIECE PLASTIC GREY BS-095105
...
50
ACCESS PANEL, W/O SLOT BS-93007-823
...
51
SCREW, 10-24X.50 BS-711629
...
--
INST BOOK & PARTS LIST BS-F-000798J
