42580x89A Murray - Lawn Tractor (2000)

Model: 42580x89A

Back To Assemblies

Save Part Not Listed?
product name

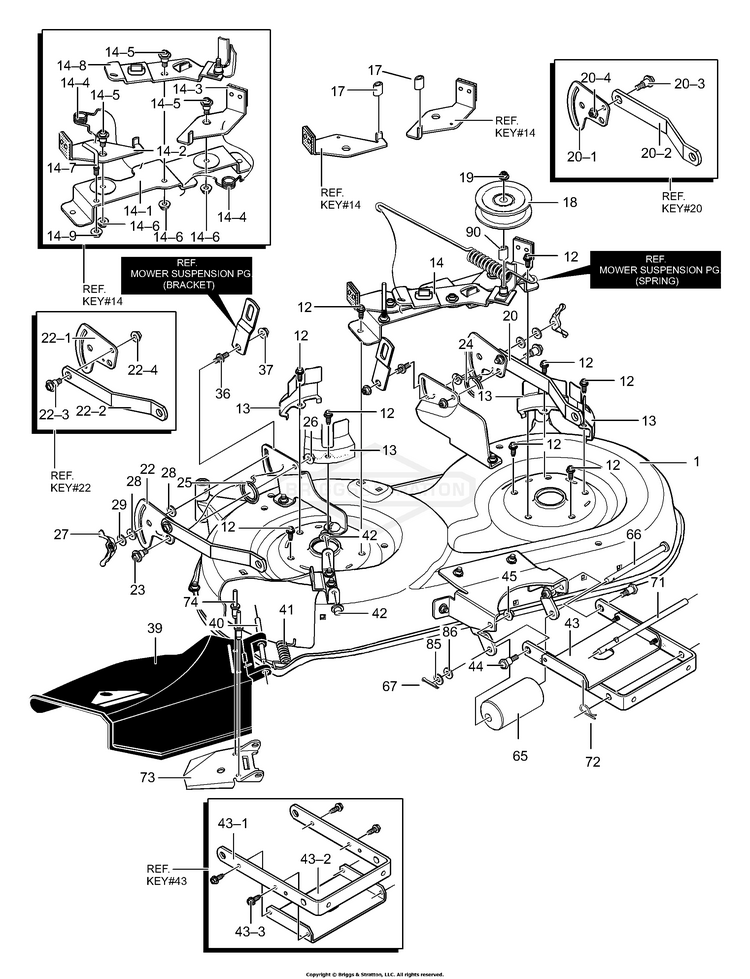

Deck Assembly (part 2)

...
...
1
ASSEMBLY, 42" MOWER DECK BS-710774-821
...
12
SCREW-HEX WSHR HD TAP BS-2828635SM
...
13
COVER, BELT GUIDE BS-94051-821
...
14
ASM., BRKT SUP W/BRAKES BS-690138-821
...
14-1
BRACKET, BRAKE MTG. BS-94193
...
14-2
SPACER, Fuel Tank BS-691633
...
14-3
ASSY., BRAKE LH BS-94049
...
14-4
TORSION SPRING BS-710227
...
14-5
BOOT-SPARK PLUG BS-710634
...
14-6
NUT, CNTR LCK, 3/8-16 BS-703893
...
14-7
SCREW GUIDE BS-094781MA
...
14-8
ASSY., IDLER ARM BS-690408
...
14-9
NUT, HEX FLNG,5/16-18 BS-704067
...
17
TUBE, BRAKE TAB PAD BS-690073
...
18
PULLEY, IDLER BS-690451
...
19
NUT, 3/8-16 BS-711920MA
...
20
PLATE ASM., LH REAR SUSP BS-341594-821
...
20-1
SCREW BS-690837
...
20-2
SUSPENSION BRACKET REAR BS-94055
...
20-3
BOLT, SHOULDER BS-009X52MA
...
20-4
NUT, CNTR LCK, 3/8-16 BS-703893
...
22
PLATE ASM., RH REAR SUSP BS-341593-821
...
22-1
SCREW BS-690837
...
22-2
SUSPENSION BRACKET REAR BS-94055
...
22-3
BOLT, SHOULDER BS-009X52MA
...
22-4
NUT, CNTR LCK, 3/8-16 BS-703893
...
23
BOLT, SHOULDER BS-711611
...
24
SPRING,TORSION BS-710113
...
25
SPRING,TORSION BS-710112
...
26
NUT BS-711622
...
27
WINGNUT, 5/16-18 BS-711600
...
28
FRICTION PAD BS-094137MA
...
29
WASHER,FLAT .33 1. 16 BS-017X45MA
...
36
PIN, HANGER BS-711595
...
37
NUT BS-711622
...
39
DEFLECTOR CHUTE BS-094687MA
...
40
ROD, Deflector BS-094957ZMA
...
41
SPRING - TORSSION BS-710194
...
42
NUT, PUSH CAP BS-711627MA
...
43
ASM. BRKT. & STIFFENER BS-690058-821
...
43-1
BRACKET, SUSPENSION BS-94058
...
43-2
STIFFENER BS-95057
...
43-3
SCREW, 5/16-18 x 0.75 BS-26X249MA
...
44
BOLT, SHOULDER BS-711611
...
45
NUT BS-711622
...
65
ROLLER BS-310071MA
...
66
ROD,SUPPORT BS-95275MA
...
67
PIN, COTTER BS-711667
...
71
ROD, HANGER BS-95295
...
72
PIN, HAIR BS-711676
...
73
DEFLECTOR SUPPORT BS-94686-821
...
74
RIVET-SEMI BS-711624MA
...
85
WASHER, FLAT BS-711617
...
86
WASHER, WAVE BS-711739
...
90
SPACER 1/2 TO 17MM BS-690369MA
