42575x81B Murray - Lawn Tractor (2001)

Model: 42575x81B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

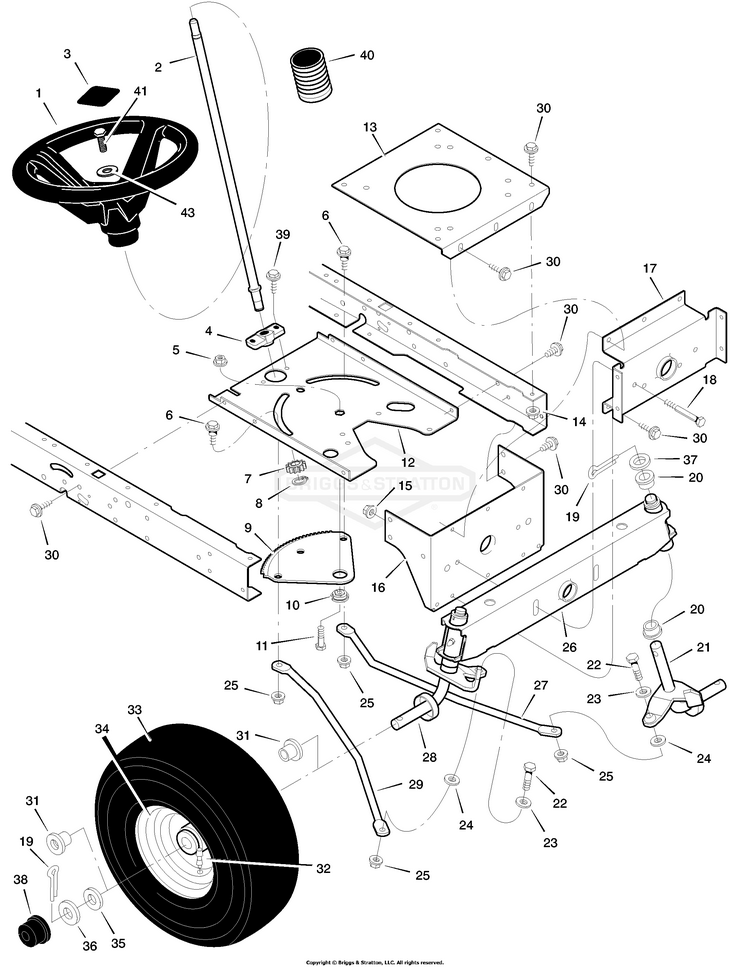

Steering

...
...
1
Wheel, Steering BS-95185
...
2
Post, Steering BS-690626
...
3
Insert, Steering Wheel BS-711326MA
...
4
Bearing BS-94124
...
5
Nut, Flange BS-15X111MA
...
6
Bolt, Shoulder BS-009X57MA
...
7
GEAR - PINION BS-690183MA
...
8
Ring, Snap BS-011X25MA
...
9
Gear, Sector BS-94121E700
...
10
Bearing BS-94123
...
11
BOLT BS-5025011X8FS
...
12
Plate, Steering BS-1001121E700
...
13
Plate, Engine BS-94006E700
...
14
NUT, HEX FLNG,5/16-18 BS-704067
...
15
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
16
Bracket, Hanger BS-94013E700
...
17
Axle, Hanger BS-94007E700
...
18
Bolt BS-01X146MA
...
19
Pin, Cotter BS-030X49MA
...
20
Bearing BS-690150MA
...
21
Spindle Assembly, Left BS-94576E700
...
22
CAPSCREW,3/8-16X1.5 BS-703406
...
23
WASHER, FLAT BS-710083MA
...
24
Washer BS-017X53 Z
...
25
NUT, CNTR LCK, 3/8-16 BS-703893
...
26
Axle Assembly BS-7601037MA
...
27
Drag Link, Left BS-95329E700
...
28
Spindle Assembly, Right BS-94575E700
...
29
Drag Link, Right BS-95328E700
...
30
Screw BS-26X249MA
...
31
MANUAL-OPERATOR BS-91334GS
...
32
Stem, Valve BS-24373
...
33
DECAL, WARNING, DECK BS-7072921YP
...
--
Tube BS-407924
...
34
Wheel and Tire Assembly BS-94581-601
...
35
Washer BS-17X195MA
...
36
Washer BS-17X192MA
...
37
WASHER.76-1.2 13G FL BS-17X113MA
...
38
Hub Cap BS-94618
...
39
Screw BS-26X267MA
...
40
Bellows BS-54789
...
41
Screw, Hex BS-0025X3MA
...
43
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
