42575x81B Murray - Lawn Tractor (2001)

Model: 42575x81B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Mower Housing

...
...
1
Pulley, Jackshaft BS-94199
...
2
Nut, Hex BS-15X121
...
3
Belt, Mower Drive BS-037X88MA
...
4
Pulley, Idler BS-690387MA
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
6
Jackshaft BS-94129
...
7
Spacer BS-94130
...
8
Link, Lift BS-690212E700
...
9
SCREW BS-690326
...
10
Bolt, Shoulder BS-009X52MA
...
11
Bracket, Suspension BS-94055E700
...
12
Pad Assembly, Left Brake BS-94049E700
...
13
Knob BS-94068
...
14
BOLT-SHD.38-16X.499D BS-009X51MA
...
15
Plate, Suspension BS-94128E700
...
16
Spring BS-166X43MA
...
17
NUT, 5/16-18, GR5 BS-703409
...
18
Bracket, Suspension BS-94192E700
...
19
Pin, Hanger BS-95194
...
20
Washer BS-17X103MA
...
21
PIN, 3/32 X 1.6 BS-703300
...
22
SCREW-HEX WSHR HD TAP BS-2828635SM
...
23
Cover, Pulley BS-94051E700
...
24
Bolt, Shoulder BS-009X39MA
...
25
Arm, Idler BS-690408E700
...
26
Spring BS-166X41MA
...
27
Pad Assembly, Right Brake BS-94047E700
...
28
Bracket, Brake BS-94193E700
...
29
Spring BS-166X42MA
...
30
Bracket, Suspension BS-94191E700
...
31
Plate BS-92426E700
...
32
NUT, HEX FLNG,5/16-18 BS-704067
...
33
BOLT BS-703159
...
34
Mandrell Housing BS-1001049
...
35
Bracket, Suspension BS-94058E700
...
36
Adapter, Blade BS-1001035
...
37
Blade BS-95100E701
...
38
Washer BS-17X166MA
...
39
Washer BS-17X165MA
...
40
Nut BS-15X100MA
...
41
Spring BS-0166X4MA
...
42
PUSHNUT, 3/8 BS-703948
...
43
Rod, Deflector BS-94957 Z
...
44
Deflector Assembly BS-94707SE
...
45
Bracket, Deflector Hinge BS-94956E700
...
46
Bracket, Front Hanger BS-94686E700
...
47
Washer BS-017X45 Z
...
48
Guide, Belt BS-94781
...
49
Spacer BS-690369MA
...
50
Bolt, Axle BS-94025
...
51
Washer BS-017X91 Z
...
52
Spring, Extension BS-165X119MA
...
53
Wheel, Gage BS-092683MA
...
54
Bracket, Right Wheel BS-1001260E700
...
55
Bracket, Left Wheel BS-92423E700
...
57
Screw BS-26X249MA
...
58
Stiffener BS-94604E700
...
59
Housing, Blade (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56) BS-94814E700
...
60
Ring, Locking BS-031X11MA
...
61
Plate, Mulcher BS-95080E700
...
62
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
63
NUT BS-703141

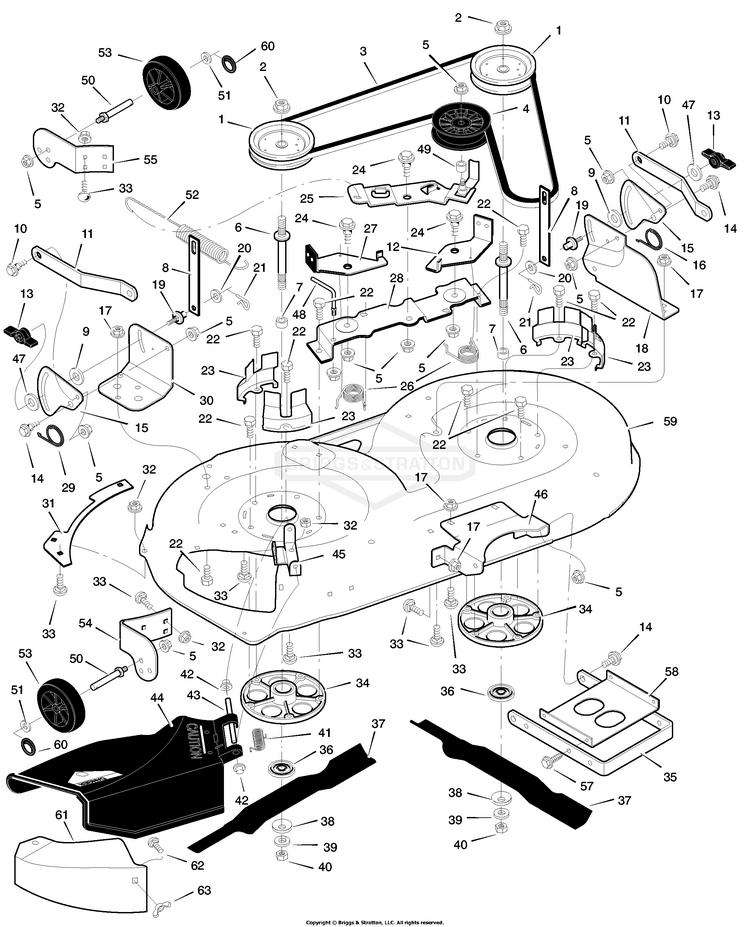

Schematic Image Zoomed
