42575x81B Murray - Lawn Tractor (2001)

Model: 42575x81B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

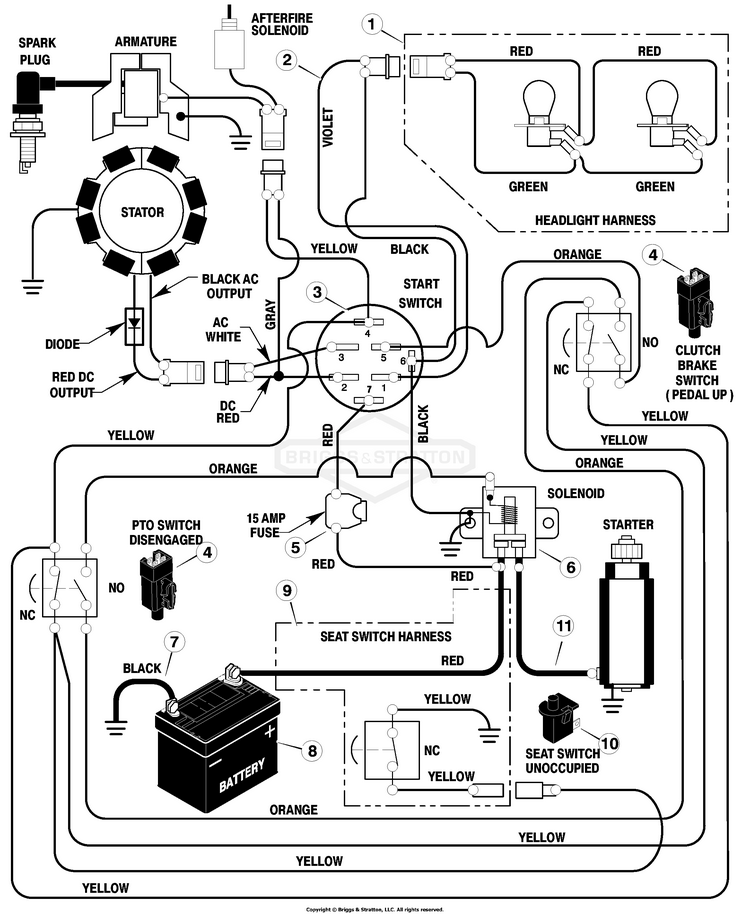

Electrical System

...
...
1
Harness, Light Wire BS-250X92MA
...
--
Socket, Light BS-92372
...
--
HHCS, 1/4C X1-1/2 BS-7090639YP
...
2
Harness, Chassis Wire BS-250X87MA
...
3
Switch, Ignition BS-92556
...
--
Key, Ignition BS-20729
...
--
HLDR, BRUSH BS-91489GS
...
--
PLUG BS-794903
...
4
Switch, Limit BS-94136
...
5
Fuse BS-54212
...
--
Holder, Fuse BS-407078MA
...
6
PLUG, Oil Drain BS-691680
...
--
Screw, Mounting BS-26X229MA
...
--
NUT, 1/4-20, NYLOCK BS-703232
...
7
Cable, Battery Ground BS-024X32MA
...
--
Screw, Ground Cable BS-26X213MA
...
8
Battery BS-21075
...
--
BOLT, 1/4-20X0.625 BS-703841
...
--
Wingnut BS-014X79MA
...
9
Harness, Seat Switch Wire BS-250X67MA
...
10
Switch, Seat Sensor BS-94159
...
11
Cable BS-024X31MA
