42575x81B Murray - Lawn Tractor (2001)

Model: 42575x81B

Back To Assemblies

Save Part Not Listed?
product name

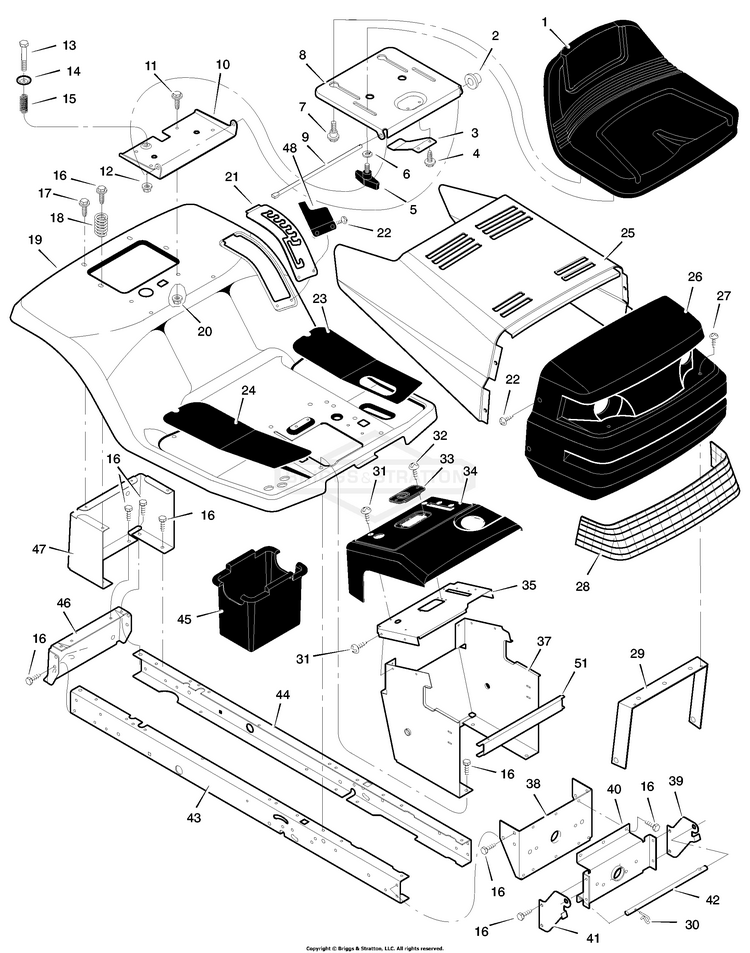

Chassis & Hood

...
...
1
Seat BS-95415
...
2
PUSHNUT, 3/8 BS-703948
...
3
BEARING- LOWER BS-94124
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
Support, Seat BS-94154E700
...
9
Rod, Pivot BS-94156 Z
...
10
Bracket, Pivot BS-94153E700
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-94155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-95122E020
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
Plate, Index BS-94151E700
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-94371
...
24
Mat, Right BS-94372
...
25
Hood BS-92333E020
...
26
Grille Assembly (Includes Lens) BS-92350E700
...
27
Screw BS-26X239MA
...
28
Lens BS-092344
...
29
Brace, Grille BS-92448
...
30
PIN, 3/32 X 1.6 BS-703300
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X239MA
...
33
Bearing, Steering BS-94214
...
34
Dash BS-94218E700
...
35
Plate, Dash BS-94211E700
...
36
Panel, Access BS-93007E700
...
37
Support, Dash BS-95323E700
...
38
Bracket, Rear Hanger BS-94013E700
...
39
Support, Left Grille BS-690544E700
...
40
Axle, Hanger BS-94007E700
...
41
Support, Right Grille BS-690543E700
...
42
Rod, Pivot BS-92332 Z
...
43
Frame, Right BS-1001124E700
...
44
Frame, Left BS-1001123E700
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E700
...
47
Panel, Rear BS-690434E700
...
48
Cover, Index Plate BS-94610
...
51
Channel BS-94215E700
...
--
Book, Instruction BS-F-010763L
