42568x59A Murray - Lawn Tractor (1997)

Model: 42568x59A

Back To Assemblies

Save Part Not Listed?
product name

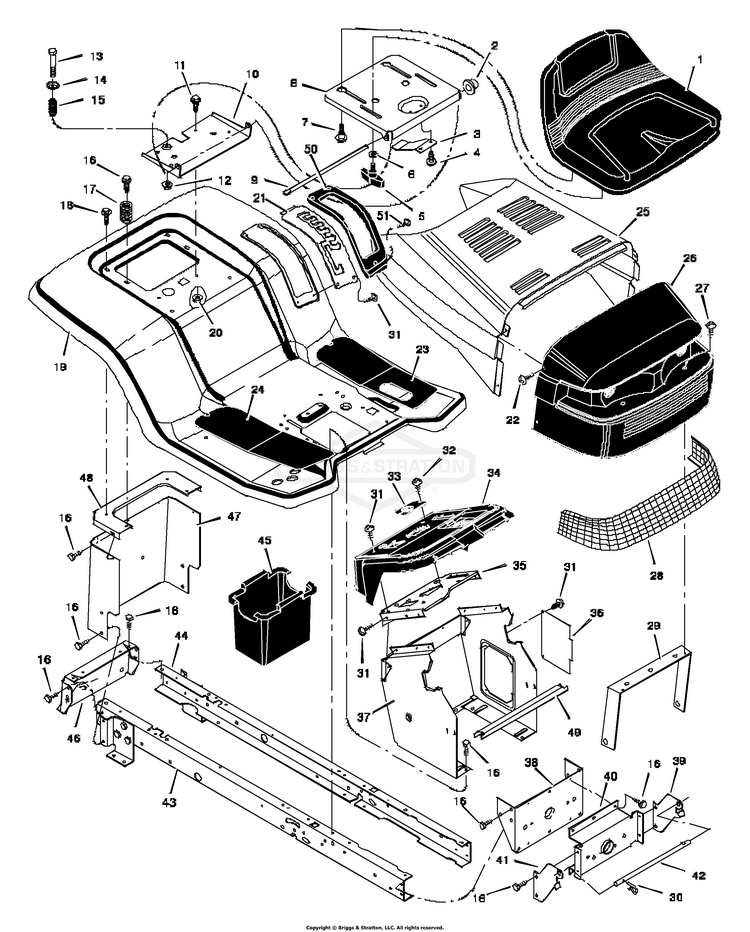

Chassis & Hood

...
...
1
Seat BS-094803
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-094160
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
Support, Seat BS-94154E701
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-94153E701
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-094489E245
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
Plate, Index BS-94886E701
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-095437
...
24
Mat, Right BS-095438
...
25
HOOD BS-093215E701MA
...
26
Grille Assembly (Includes Lens) BS-93243E717
...
27
Screw BS-26X239MA
...
28
Lens BS-093139MA
...
29
Brace, Grille BS-093190MA
...
30
PIN, 3/32 X 1.6 BS-703300
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-094219MA
...
34
Dash BS-095034
...
35
Plate, Dash BS-94221E701
...
36
Panel, Access BS-93007E717
...
37
Support, Dash BS-94220E717
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
39
Support, Left Grille BS-94213E701
...
40
Axle, Hanger BS-094007E701MA
...
41
Support, Right Grille BS-94212E701
...
42
Rod, Pivot BS-093137 Z
...
43
Frame, Right BS-94000E701
...
44
Frame, Left BS-94001 E701
...
45
Container, Battery BS-094069
...
46
Plate, Hitch BS-94002E717MA
...
47
Panel, Rear BS-94187E717
...
48
SCREW BS-690367
...
49
Channel BS-94222E701
...
50
Cover BS-094490
...
51
Screw BS-26X284MA
...
--
Decal, Right Hood BS-44X7114
...
--
Decal, Left Hood BS-44X7115
...
--
Decal, Warning BS-44X6815MA
...
--
Book, Instruction BS-F-97818
...
--
Book, Instruction BS-F-97819
...
--
Parts List BS-F-97820
