425638x692A Murray - Lawn Tractor (2003)

Model: 425638x692A

Back To Assemblies

Save Part Not Listed?
product name

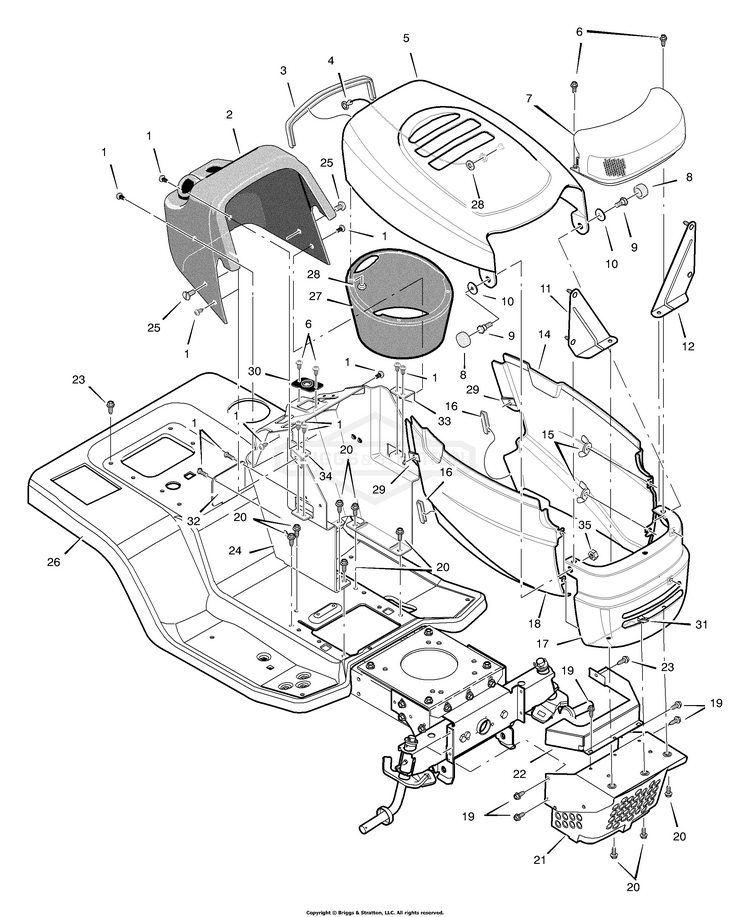

Hood & Grill

...
...
1
SCREW, Thread Forming BS-26X270MA
...
2
Dash BS-1001113
...
3
Trim BS-7601029
...
4
Cable BS-643129
...
5
Hood Assembly BS-1001186E700
...
6
Screw BS-26X238MA
...
7
PIN, DETENT, W/LANYARD BS-95234GS
...
8
Cap, Pivot BS-690113MA
...
9
Bolt, Shoulder BS-009X49MA
...
10
Base, Pivot BS-690114
...
11
Brace, Right Grille Assembly BS-1001169E701
...
12
Brace, Left Grille Assembly BS-1001171E701
...
14
Panel, Left Side BS-094457E700
...
15
Wingnut BS-014X79MA
...
16
Trim BS-7601029
...
17
Grille BS-1001126E701
...
18
Panel, Right Side BS-094458E701
...
19
Screw BS-26X277MA
...
20
Screw BS-26X249MA
...
21
Guard Assembly, Muffler BS-1001191
...
22
Shield, Upper Heat BS-1001644
...
23
SCREW.25-20 S-T BS-26X263MA
...
24
Console BS-095173E701
...
25
Screw BS-26X239MA
...
26
Deck Seat BS-1001099E700
...
27
Plenum BS-1001157
...
28
Retainer, Push BS-028X49MA
...
29
PUSHNUT, 3/8 BS-703948
...
30
Bearing, Steering BS-1001491MA
...
31
U-Nut BS-028X57
...
32
Panel, Access BS-093007E701MA
...
33
Bracket, Right Console BS-094464
...
34
Bracket, Left Console BS-094465
...
35
NUT, CNTR LCK, 3/8-16 BS-703893
...
--
Book, Instruction BS-F-030759L
